UltraCharge 30kW | Compact CCS2 DC EV Charger | Evergy

Call for pricing

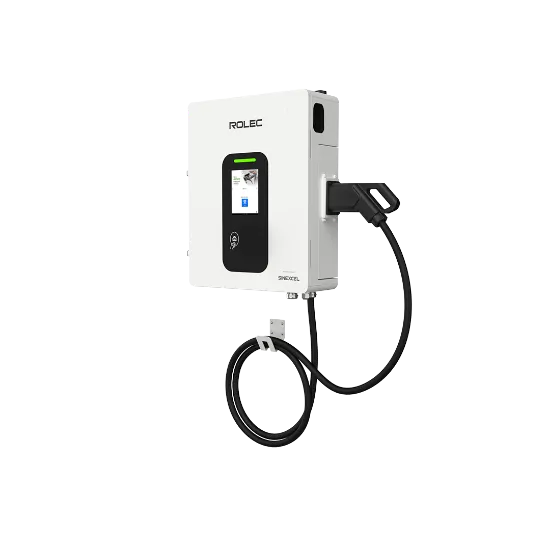

The Rolec UltraCharge 30 is a compact 30kW DC EV charger with a single CCS2 outlet—ideal for forecourts, hotels and small public charging bays.

30kW fast charging via 1x CCS2 connector
Wall or pedestal mounting options
OCPP compliant, with app and RFID access

Why We Recommend This Product: It’s perfect for sites that want reliable DC charging without the cost or load of higher-output units.

Need installation? Call 01844 393939 now!

SKU: EVDC7010

Free and easy returns | Easy to Install | Professional Installers Available

UltraCharge 30kW: Compact DC Charger for Light Commercial Use

The Rolec UltraCharge 30 delivers 30kW of DC power through a single CCS2 connector, making it the ideal choice for lower-traffic commercial settings. From office car parks to EV-ready hotels, this unit provides dependable rapid charging in a compact design.

30kW CCS2 Output in a Streamlined Format

Built to suit smaller spaces, this unit supports one EV at a time using its 1x CCS2 outlet. While lighter than 60kW or 120kW models, it’s still fast enough for most daily EV top-ups—charging vehicles in around an hour depending on battery size.

DC output: 30kW via CCS2 connector
Perfect for shorter dwell-time locations
Supports standard UK power infrastructure

Flexible Mounting, Built for Outdoors

The UltraCharge 30 can be wall or pedestal mounted. Its weatherproof IP54 casing, LED halo and bright touchscreen make it ideal for exposed locations like petrol stations, retail car parks or public access points.

Smart Connectivity and Payment Ready

Featuring full OCPP 1.6 support, the unit integrates with most back-office platforms. EV drivers can charge using app control, RFID cards or optional contactless payment.

Why Evergy Recommend This Product

Simple and effective for lighter-duty charging needs
Ideal for adding EV infrastructure to smaller commercial sites
Cost-efficient and easy to install

Ideal For

Shops, hotels, restaurants, business car parks, residential blocks or public sites with low to moderate EV traffic.

Key Specifications

Output: 30kW DC
Connector: 1x CCS2
Mounting: Wall or pedestal

See ‘Specification’ tab or datasheet for full technical details.

Delivery

This item includes free UK delivery. Larger quantities may be palletised. Visit our delivery page for full details.

Other Models in the Range

UltraCharge 60kW – Adds dual connector capability
UltraCharge 80kW – Mid-range dual CCS2
UltraCharge 120kW – Higher power for busier locations

Attribute name	Attribute value
Connectivity	4G / Ethernet
Cable Length	5m (optional 7m)
Connector	CCS2
Protection	Under/overvoltage, DC overcurrent, over-temp, surge
Dimensions	550mm x 700mm x 200mm (W x H x D)
Weight	< 65kg
User Interface	8" HD touch screen
Charging Speed	Up to 30kW
Charging Output	1x DC
OCPP Compliance	1.6 (upgradable to 2.0.1)
Activation Methods	Plug & charge, mobile app, RFID (optional contactless payment)
Output Voltage Range	375V - 1000V
Ingress Protection	IP55
Efficiency	96% peak
Enclosure Protection	IK10

ROLEC

Rolec Services is a world-leading specialist in the design, manufacture, installation, and supply of a wide range of outdoor electrical equipment. With three decades of experience, they provide products like electrical connections, charging, hook-up, and distribution equipment. The company employs around 140 personnel and has a distribution network in over 40 countries.
