UltraCharge 160 60kW | CCS2 + CHAdeMO DC Charger | Evergy

Call for pricing

The Rolec UltraCharge 160 60kW delivers reliable DC charging with one CCS2 and one CHAdeMO connector—perfect for public or mixed-use installations.

60kW shared output across 1x CCS2 and 1x CHAdeMO
Supports dual-vehicle charging with smart load sharing
Compact design with smart controls and OCPP support

Why We Recommend This Product: It suits locations needing compatibility with older EVs alongside modern CCS2 vehicles.

Need installation? Call 01844 393939 now!

SKU: EVDC2010

Free and easy returns | Easy to Install | Professional Installers Available

UltraCharge 160 60kW: Smart Dual Connector DC EV Charger

The Rolec UltraCharge 160 (60kW) is a dual-vehicle DC charger with a shared output across 1x CCS2 and 1x CHAdeMO. It’s the ideal model for public EV charging stations needing flexibility for older EVs and new-generation vehicles.

Flexible Charging for Mixed EV Fleets

This unit offers a shared 60kW output, allowing both connectors to be used simultaneously with dynamic load management. It’s a practical solution for charge point operators or local authorities who need to serve all EV users.

1x CCS2 and 1x CHAdeMO connector
60kW max DC output shared between sockets
Supports both older and newer EV types

Compact Design, Easy to Operate

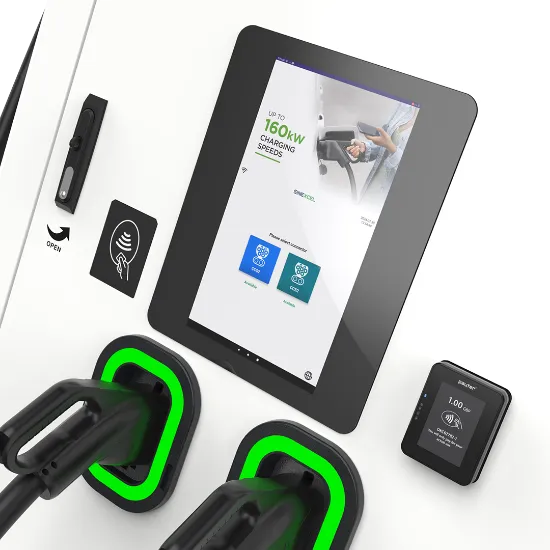

This charger features a 15.6” touchscreen, a multicolour LED status halo, and is built within a small footprint stainless steel housing. Designed for simplicity, it’s easy to navigate for both drivers and installers.

Built for UK Commercial Environments

Air-cooled, surge-protected and weatherproof, the 60kW model is suited for installation in retail car parks, councils, and commercial properties.

Powder-coated IP54-rated enclosure
Surge, RCD, smoke, and tilt protection options
Supports RFID, app control, and contactless payment

Why Evergy Recommend This Product

Provides dual connector options in one compact unit
Ideal for mixed fleets or areas with older EVs
OCPP compliance ensures integration with your back office

Ideal For

Public charge points, local authorities, mixed EV fleets, and commercial locations looking to future-proof their setup.

Key Specifications

Output: 60kW DC
Connectors: 1x CCS2 + 1x CHAdeMO
Interface: 15.6” display with LED status ring

See product datasheet or 'Specification' tab for full technical information.

Delivery

This charger includes free UK delivery. Pallet shipping may apply to large orders. Visit our delivery info page for more details.

Compare with Other Models

UltraCharge 80kW – Dual CCS2, higher capacity
UltraCharge 120kW – Smart charging at scale
UltraCharge 30kW – Entry-level commercial DC charger

Looking to shield your charger from vehicle bumps or knocks? Add the Rolec Root Mount EV Protector for robust ground-level defence.

Need help? Get in touch or call 01844 393939 for advice or installation support.

Attribute name	Attribute value
Finish	All-weather powder-coated
Cable Length	5m (4.5m exposed, extended 7m cables available)
User Interface	15-inch HD touchscreen display
RFID Reader	ISO 14443 A + B, ISO/IEC 15693, Mifare 1
NFC Contactless Payment Terminal	Optional
Plug & Charge	ISO 15118
Status Indicator	RGB LED
Dynamic Power Balancing	Advanced
Load Management	Static and dynamic (software configurable)
AC Input Voltage	400V ± 10%
Input Frequency	50/60 Hz
Input Type	3P + N + PE
Power Factor	0.99
Connector Options	CCS2 (other configurations available)
DC Output Voltage Range	200 to 1000 VDC
Maximum Output Current	300A
Peak Efficiency	96%
Communications	4G, RJ45 Ethernet connection, OCPP 1.6J, OCPP 2.0.1 upgradable
Body Material	304 Stainless steel
EMC Compliance	Class A (industrial)
Warranty	2 years (extended warranty available upon request)
Ingress Protection	IP55
Rated Power	DC up to 160kW (model dependent)
Certifications	CE, UKCA, TUV, TR25, RCM
Enclosure Protection	IK10

EVDC2010

ROLEC

Rolec Services is a world-leading specialist in the design, manufacture, installation, and supply of a wide range of outdoor electrical equipment. With three decades of experience, they provide products like electrical connections, charging, hook-up, and distribution equipment. The company employs around 140 personnel and has a distribution network in over 40 countries.
