UltraCharge 160 120kW DC EV Charger with 2x CCS2

Name: UltraCharge 160 120kW DC EV Charger with 2x CCS2
SKU: EVDC2030
Availability: InStock

Call for pricing

SKU: EVDC2030

Qty:

Free and easy returns | Easy to Install | Professional Installers Available

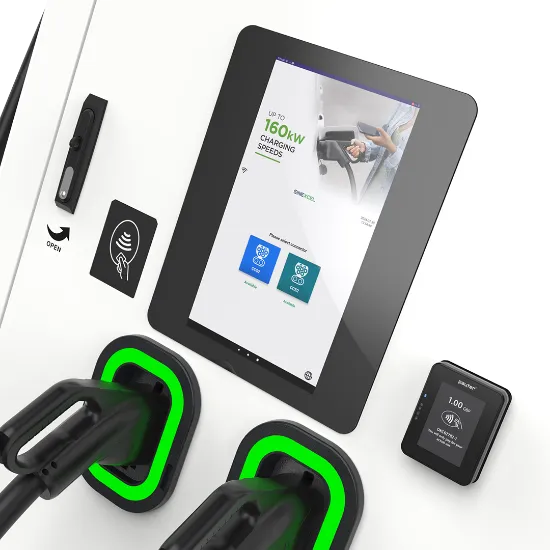

The ULTRACHARGE 160 is a 120kW DC ultra-rapid charging station engineered to meet the most demanding requirements of public, fleet, and highway EV charging infrastructure. Its modular design allows for upgrades in 20kW increments, up to a maximum of 160kW, providing unmatched flexibility and future-proofing for your investment.

Key Features:

Unrivaled Charging Speed: Delivers 120kW of ultra-rapid charging power, significantly reducing charging times for all EVs. Supports simultaneous charging of two vehicles with intelligent dynamic power-sharing.
Versatile Payment Options: Accepts a wide range of payment methods, including plug & charge, mobile app, RFID, and contactless card payments.
Intuitive User Interface: Features an integrated 7" touch screen for effortless operation.
Installer and Operator Friendly: Designed for hassle-free installation, maintenance, and servicing.
Future-Proof Connectivity: OCPP 1.6 compliant for seamless integration with a variety of charging management platforms.
Robust and Reliable: Equipped with long-reach 5m charging cables, an ultrawide output voltage range, and an IP55/IK10 rated enclosure for exceptional durability in all weather conditions.

The ULTRACHARGE 160 is the ultimate choice for businesses and organizations requiring a high-power, scalable, and user-friendly EV charging solution.

Attribute name	Attribute value
Finish	All-weather powder-coated
Cable Length	5m (4.5m exposed, extended 7m cables available)
User Interface	15-inch HD touchscreen display
RFID Reader	ISO 14443 A + B, ISO/IEC 15693, Mifare 1
NFC Contactless Payment Terminal	Optional
Plug & Charge	ISO 15118
Status Indicator	RGB LED
Dynamic Power Balancing	Advanced
Load Management	Static and dynamic (software configurable)
AC Input Voltage	400V ± 10%
Input Frequency	50/60 Hz
Input Type	3P + N + PE
Power Factor	0.99
Connector Options	CCS2 (other configurations available)
DC Output Voltage Range	200 to 1000 VDC
Maximum Output Current	300A
Peak Efficiency	96%
Communications	4G, RJ45 Ethernet connection, OCPP 1.6J, OCPP 2.0.1 upgradable
Body Material	304 Stainless steel
EMC Compliance	Class A (industrial)
Warranty	2 years (extended warranty available upon request)
Ingress Protection	IP55
Rated Power	DC up to 160kW (model dependent)
Certifications	CE, UKCA, TUV, TR25, RCM
Enclosure Protection	IK10

EVDC2030

ROLEC

Rolec Services is a world-leading specialist in the design, manufacture, installation, and supply of a wide range of outdoor electrical equipment. With three decades of experience, they provide products like electrical connections, charging, hook-up, and distribution equipment. The company employs around 140 personnel and has a distribution network in over 40 countries.
