UltraCharge 160 80kW DC EV Charger with 2x CCS2

Name: UltraCharge 160 80kW DC EV Charger with 2x CCS2
SKU: EVDC2020
Availability: InStock

Call for pricing

SKU: EVDC2020

Qty:

Free and easy returns | Easy to Install | Professional Installers Available

The ULTRACHARGE 160 is an 80kW DC ultra-rapid charging station designed to meet the growing demands of public, fleet, and highway EV charging infrastructure. Its modular design allows for upgrades in 20kW increments, up to a maximum of 160kW, ensuring your investment remains adaptable to future needs.

Key Features:

Powerful and Efficient: Delivers 80kW of ultra-rapid charging power, minimizing charging times for all EVs. Supports simultaneous charging of two vehicles with intelligent dynamic power-sharing.
Flexible Payment Options: Accepts various payment methods, including plug & charge, mobile app, RFID, and contactless card payments.

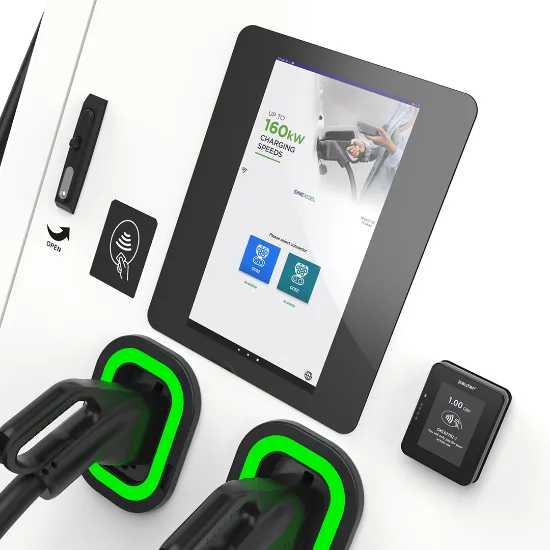

User-Friendly: Features an integrated 7" touch screen for easy operation.
Installer and Operator Friendly: Designed for straightforward installation, maintenance, and servicing.
Future-Ready: OCPP 1.6 compliant for seamless integration with a wide range of charging management platforms.
Durable and Reliable: Equipped with long-reach 5m charging cables, an ultrawide output voltage range, and an IP55/IK10 rated enclosure for all-weather performance.

The ULTRACHARGE 160 is the perfect choice for businesses and organizations seeking a high-power, scalable, and user-friendly EV charging solution.

Attribute name	Attribute value
Finish	All-weather powder-coated
Cable Length	5m (4.5m exposed, extended 7m cables available)
User Interface	15-inch HD touchscreen display
RFID Reader	ISO 14443 A + B, ISO/IEC 15693, Mifare 1
NFC Contactless Payment Terminal	Optional
Plug & Charge	ISO 15118
Status Indicator	RGB LED
Dynamic Power Balancing	Advanced
Load Management	Static and dynamic (software configurable)
AC Input Voltage	400V ± 10%
Input Frequency	50/60 Hz
Input Type	3P + N + PE
Power Factor	0.99
Connector Options	CCS2 (other configurations available)
DC Output Voltage Range	200 to 1000 VDC
Maximum Output Current	300A
Peak Efficiency	96%
Communications	4G, RJ45 Ethernet connection, OCPP 1.6J, OCPP 2.0.1 upgradable
Body Material	304 Stainless steel
EMC Compliance	Class A (industrial)
Warranty	2 years (extended warranty available upon request)
Ingress Protection	IP55
Rated Power	DC up to 160kW (model dependent)
Certifications	CE, UKCA, TUV, TR25, RCM
Enclosure Protection	IK10

EVDC2020

ROLEC

Rolec Services is a world-leading specialist in the design, manufacture, installation, and supply of a wide range of outdoor electrical equipment. With three decades of experience, they provide products like electrical connections, charging, hook-up, and distribution equipment. The company employs around 140 personnel and has a distribution network in over 40 countries.
