UltraCharge 160 160kW DC EV Charger with 2x CCS2

Name: UltraCharge 160 160kW DC EV Charger with 2x CCS2
SKU: EVDC2040
Availability: InStock

Call for pricing

SKU: EVDC2040

Qty:

Free and easy returns | Easy to Install | Professional Installers Available

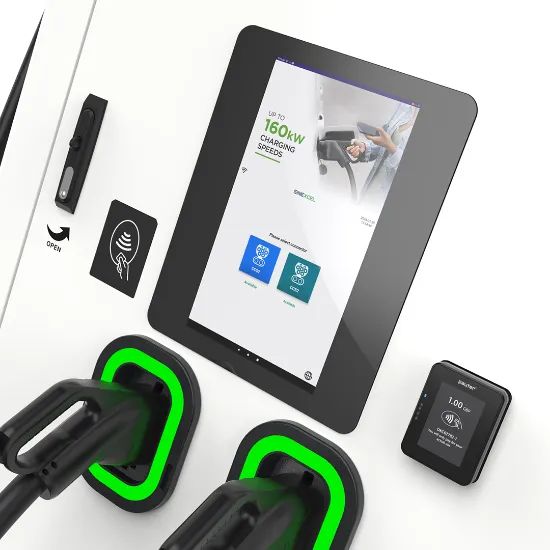

The ULTRACHARGE 160 is a 160kW DC ultra-rapid charging station, representing the pinnacle of EV charging technology. It's the perfect future-proof and cost-effective solution for public, fleet, and highway infrastructure deployment.

Key Features:

Unmatched Charging Speed: Delivers a remarkable 160kW of ultra-rapid charging power, ensuring the fastest possible charging times for all compatible EVs. Supports simultaneous charging of two vehicles with intelligent dynamic power-sharing.
Payment Flexibility: Accepts a wide array of payment methods, including plug & charge, mobile app, RFID, and contactless card payments.
Intuitive Operation: Features an integrated 7" touch screen for user-friendly interaction.
Installer and Operator Centric: Designed for effortless installation, maintenance, and servicing.
Seamless Integration: OCPP 1.6 compliant for smooth integration with a diverse range of charging management platforms.
Built to Last: Equipped with long-reach 5m charging cables, an ultrawide output voltage range, and an IP55/IK10 rated enclosure for exceptional durability and performance in any weather condition.

The ULTRACHARGE 160 is the ultimate solution for businesses and organizations demanding the highest power, flexibility, and user-friendliness in an EV charging station.

Attribute name	Attribute value
Finish	All-weather powder-coated
Cable Length	5m (4.5m exposed, extended 7m cables available)
User Interface	15-inch HD touchscreen display
RFID Reader	ISO 14443 A + B, ISO/IEC 15693, Mifare 1
NFC Contactless Payment Terminal	Optional
Plug & Charge	ISO 15118
Status Indicator	RGB LED
Dynamic Power Balancing	Advanced
Load Management	Static and dynamic (software configurable)
AC Input Voltage	400V ± 10%
Input Frequency	50/60 Hz
Input Type	3P + N + PE
Power Factor	0.99
Connector Options	CCS2 (other configurations available)
DC Output Voltage Range	200 to 1000 VDC
Maximum Output Current	300A
Peak Efficiency	96%
Communications	4G, RJ45 Ethernet connection, OCPP 1.6J, OCPP 2.0.1 upgradable
Body Material	304 Stainless steel
EMC Compliance	Class A (industrial)
Warranty	2 years (extended warranty available upon request)
Ingress Protection	IP55
Rated Power	DC up to 160kW (model dependent)
Certifications	CE, UKCA, TUV, TR25, RCM
Enclosure Protection	IK10

EVDC2040

ROLEC

Rolec Services is a world-leading specialist in the design, manufacture, installation, and supply of a wide range of outdoor electrical equipment. With three decades of experience, they provide products like electrical connections, charging, hook-up, and distribution equipment. The company employs around 140 personnel and has a distribution network in over 40 countries.
