UltraCharge 160 160kW | Dual CCS2 DC EV Charger | Rolec

Call for pricing

The Rolec UltraCharge 160 160kW is a powerful DC EV charger with dual CCS2 sockets, delivering rapid commercial charging at scale. Built for high-footfall locations with demanding usage.

160kW ultra-rapid output with 2x CCS2 connectors
Dynamic power sharing supports dual simultaneous charging
OCPP 1.6 compliant with optional payment integration

Why We Recommend This Product: It’s the fastest Rolec charger available and perfect for motorway, public or high-usage EV hubs.

Need installation? Call 01844 393939 now!

SKU: EVDC2040

Free and easy returns | Easy to Install | Professional Installers Available

UltraCharge 160 160kW: Max Power DC Charging for Commercial EV Sites

The Rolec UltraCharge 160 (160kW) delivers high-capacity EV charging with a dual CCS2 outlet setup, ideal for the most demanding commercial and public installations. As Rolec’s most powerful charger, it supports rapid, reliable charging with modular 20kW increments and dynamic power distribution.

160kW Output for Two Simultaneous Users

This unit delivers up to 160kW of total DC power, shared across two CCS2 charging cables. It can handle two vehicles at once or prioritise full-speed charging for a single EV, using intelligent dynamic load management.

160kW total DC output via 2x CCS2 sockets
Supports parallel or sequential charging
Modular power stacks allow future upgrades

Made for Busy, High-Usage Environments

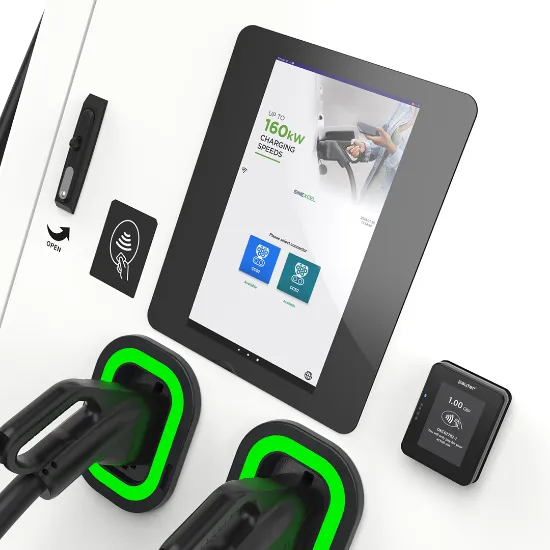

With a 15.6” touchscreen, multicolour LED status lights, and stainless steel weatherproof housing, the UltraCharge 160 is built for visibility and resilience. It's ideal for forecourts, public car parks and EV fleets.

IP54 rated with powder-coated steel enclosure
Optional flood, tilt and smoke sensors
Built-in Type B RCD protection

Smart Charging and Back-Office Integration

The system is fully OCPP 1.6 compliant and integrates with third-party platforms for billing, user management, and remote monitoring. Contactless payment terminals can be added to support pay-as-you-go usage.

Why Evergy Recommend This Product

Fastest Rolec charger – ideal for dual-car charging bays
Suited for service stations, charge hubs and fleet centres
Upgradeable and built to scale as EV adoption increases

Ideal For

Motorway services, commercial hubs, rapid-charge forecourts, and any high-demand EV charging location.

Key Specifications

Output: 160kW DC
Connectors: 2x CCS2
Interface: 15.6” touchscreen + LED halo

See the ‘Specification’ tab or product datasheet for further details.

Delivery

Includes free UK delivery. Larger orders may require pallet shipping. Visit our delivery info page for more.

Explore Other Options

UltraCharge 120kW – Balanced high-speed charging
UltraCharge 80kW – Mid-range commercial use
UltraCharge 30kW – Wall-mounted EV charging

Protect your EV charger setup with the Rolec Root Mount EV Chargepoint Protector (800mm x 1000mm) — ideal for surface protection in commercial and public spaces.

Need guidance? Speak to Evergy or call 01844 393939 to plan your charger installation.

Attribute name	Attribute value
Finish	All-weather powder-coated
Cable Length	5m (4.5m exposed, extended 7m cables available)
User Interface	15-inch HD touchscreen display
RFID Reader	ISO 14443 A + B, ISO/IEC 15693, Mifare 1
NFC Contactless Payment Terminal	Optional
Plug & Charge	ISO 15118
Status Indicator	RGB LED
Dynamic Power Balancing	Advanced
Load Management	Static and dynamic (software configurable)
AC Input Voltage	400V ± 10%
Input Frequency	50/60 Hz
Input Type	3P + N + PE
Power Factor	0.99
Connector Options	CCS2 (other configurations available)
DC Output Voltage Range	200 to 1000 VDC
Maximum Output Current	300A
Peak Efficiency	96%
Communications	4G, RJ45 Ethernet connection, OCPP 1.6J, OCPP 2.0.1 upgradable
Body Material	304 Stainless steel
EMC Compliance	Class A (industrial)
Warranty	2 years (extended warranty available upon request)
Ingress Protection	IP55
Rated Power	DC up to 160kW (model dependent)
Certifications	CE, UKCA, TUV, TR25, RCM
Enclosure Protection	IK10

EVDC2040

ROLEC

Rolec Services is a world-leading specialist in the design, manufacture, installation, and supply of a wide range of outdoor electrical equipment. With three decades of experience, they provide products like electrical connections, charging, hook-up, and distribution equipment. The company employs around 140 personnel and has a distribution network in over 40 countries.
