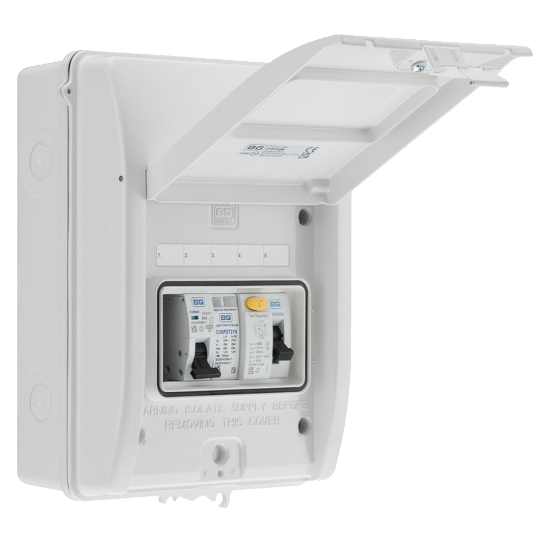

Picture of BG SyncEV White EV Consumer Unit - 40A RCD, 40A MCB, SPD (CFEV5AW-01)

BG SyncEV White EV Consumer Unit - 40A RCD, 40A MCB, SPD (CFEV5AW-01)

Ā£57.00

šŸ£ 5% OFF PRICE SHOWN ABOVE

Use code EASTER5 at checkout
Registered accounts only.

Offer expires Friday 25th April 2025.


Safely power your external EV charger with the BG SyncEV CFEV5AW-01 consumer unit in gloss white. This IP65 rated unit provides dedicated 18th Edition Amendment 2 compliant protection, featuring a 40A Type A RCD, 40A MCB, and Type 2 SPD.

  • EV Circuit Protection: Includes 40A Type A RCD incomer, 40A MCB overcurrent protection, and integrated surge protection (SPD).
  • IP65 Weatherproof: Durable cast aluminium enclosure suitable for outdoor mounting, as per the product datasheet.
  • 18th Edition Compliant: Designed to meet the latest safety standards (Amd 2) for EV charger circuits.

Why We Recommend This Product: The CFEV5AW-01 offers a compliant and robust solution for external EV charger circuits with separate RCD/MCB protection, presented in a clean white finish. Also available in grey (CFEV5A-01).

SKU: CFEV5AW-01
Free and easy returns | Easy to Install | Professional Installers Available
Share:

BG SyncEV CFEV5AW-01: Clean White IP65 Consumer Unit with RCD + MCB for EV Chargers

Protect your external EV charger circuit reliably and stylishly with the BG SyncEV CFEV5AW-01 consumer unit. Finished in gloss white (RAL 9016) and housed in a tough IP65 rated cast aluminium enclosure, it's designed specifically for outdoor electric vehicle charger installations. This unit provides dedicated circuit protection fully compliant with the 18th Edition Wiring Regulations (BS 7671) Amendment 2.

Separate RCD and Overcurrent Protection

This model ensures comprehensive safety with distinct protective devices. The technical details confirm it includes a 40A 30mA Double Pole Type A RCD as the main incoming device, a separate 40A B Curve MCB providing overcurrent protection for the EV charger circuit, and an essential Type 2 Surge Protection Device (SPD). This arrangement offers clear fault identification for installers.

Designed for Durability Outdoors (IP65)

The robust 2mm cast aluminium construction provides excellent durability and IP65 protection against dust and water ingress, making it ideal for external mounting. The unit's UV stability, mentioned in the manufacturer's data, ensures the gloss white finish remains crisp. Ample M20 knockouts (drillable to M32) allow for versatile EV cabling configurations.

Compliance with 18th Edition Amendment 2

Install with the assurance of meeting current BS 7671:2018+A2:2022 standards. The BG SyncEV CFEV5AW-01 incorporates required Type A RCD sensitivity and Type 2 SPD surge protection for EV charging points. Security features like padlock compatibility and wire seal tabs are also included.

Why Evergy Recommend This Product

The CFEV5AW-01 is a solid choice for protecting external EV circuits:

  • Provides a fully compliant 18th Edition Amendment 2 solution.
  • Features separate, clearly defined 40A Type A RCD and 40A MCB protection.
  • Includes vital Type 2 Surge Protection.
  • Offers durable IP65 cast aluminium construction in a clean gloss white finish.
  • Also available in anthracite grey (CFEV5A-01). Compare with the RCBO alternative: CFEV5RDAW-01 (White).

Technical Specifications Overview

From the BG SyncEV product datasheet:

  • Model: CFEV5AW-01
  • Included Devices: 40A DP Type A RCD (30mA - Incomer), 40A B Curve MCB, Type 2 SPD
  • Enclosure: IP65 Cast Aluminium, Gloss White (RAL 9016)
  • Compliance: BS7671:2018+A2:2022 (18th Edition Amd 2)

For full technical information, please view the official datasheet or the specification tab.

Ensure Safe EV Charger Operation

Select the BG SyncEV CFEV5AW-01 for a compliant, sturdy protection unit for your external home EV charger or qualifying commercial EV charger installation. Remember to use appropriate EV cabling during setup.

Attribute nameAttribute value
Enclosure RatingIP65
Components Included40A 30mA Type A RCD, 40A Type B MCB, Type 2 SPD
Dimensions233mm (H) x 176mm (W) x 100mm (D)
Weight2.125 kg
MaterialMetal with a white finish
ApplicationSuitable for EV chargers in aesthetically sensitive environments.
