Doncaster Cables EV-Ultra™ 3C 6.0mm² Power + Cat 5 Data Cable

£7.00

Simplify your single-phase smart EV charger installation with EV-Ultra™ cable by Doncaster Cables. This version bundles robust 3 Core 6.0mm² power conductors with a full Cat 5e data cable in one easy-to-manage LSHF cable.

Power & Full Data: Combines 3 x 6.0mm² power cores (L,N,E) with an integrated 4-pair Cat 5e data cable.
Efficient Installation: Saves time and effort by running just one cable for both power and network/data connectivity.
Smart Charger Ready: Meets the requirements for smart EV chargers needing robust power delivery (6.0mm²) and Ethernet data communication.

Why We Recommend This Product: An excellent all-in-one cabling solution for higher power single-phase smart chargers or longer runs requiring 6.0mm² power and Cat 5e data. Check out the SWA armoured version or the 4.0mm² option.

SKU: EV-ULTRA3C6.0CAT5

Free and easy returns | Easy to Install | Professional Installers Available

Doncaster Cables EV-Ultra™: Combined 3 Core 6.0mm² Power + Cat 5e Data Cable

Connect your high-power single-phase smart EV charger efficiently with the EV-Ultra™ cable from Doncaster Cables. This purpose-designed cable integrates 3 core 6.0mm² power conductors (Live, Neutral, Earth) alongside a full 4-pair Cat 5e UTP data cable within a single LSHF sheath. It provides a neat and compliant solution for connecting your charger back to the consumer unit or distribution board.

Robust Power Delivery & Network Connectivity

The 6.0mm² power cores offer lower voltage drop compared to 4.0mm², making this cable suitable for chargers drawing higher currents or installations with longer cable runs. The integrated Cat 5e data cable ensures reliable communication for smart features, online connectivity, and potential load balancing systems, essential for many modern EV chargers. Combining both eliminates the complexity of installing separate conduits or routes.

LSHF Sheath for Enhanced Fire Safety

Manufactured with a Low Smoke Halogen Free (LSHF) outer sheath, this cable enhances safety. In the event of a fire, LSHF materials produce significantly lower levels of smoke and non-toxic fumes compared to PVC, aiding visibility and safety. The cable meets relevant standards, including BS 7671 section 722 requirements, as confirmed in the product information.

Built for EV Charging Installations

The EV-Ultra™ range is specifically designed for the demands of EV charger wiring. It is UV stable and impact resistant, suitable for fixed installations indoors or outdoors (when correctly installed within suitable containment). This combined cable approach simplifies planning and execution of the installation.

Why Evergy Recommend This Product

The EV-Ultra™ 3C 6.0mm² + Cat 5e cable is a versatile choice:

Combines robust 3x6.0mm² power and Cat 5e data in a single cable.
Ideal for higher power single-phase smart chargers or longer installation runs.
Simplifies installation compared to separate power and data runs.
LSHF outer sheath provides enhanced fire safety performance.
Consider the SWA version for direct burial/mechanical protection, the 2-core data option for simpler comms, or the 5-core version for three-phase installs.

Technical Specifications Overview

Based on the Doncaster Cables EV-Ultra™ datasheet:

Part Code Ref:** EVU3C6PPLSHF
Power Cores: 3 x 6.0mm² (Brown, Blue, Green/Yellow)
Data Cores: 1 x Cat 5e UTP (4 Pair)
Outer Sheath: LSHF (Low Smoke Halogen Free)
Nominal OD:** ~17.5mm (Requires appropriate size glands, e.g. M25 - check specific gland range)

Consult the full datasheet for all technical specifications and certifications.

Power and Connect Your Smart Charger

Use the EV-Ultra™ 3C 6.0mm² + Cat 5e cable for a high-quality, compliant installation of your smart single-phase charger. Ensure compatibility with your chosen EV circuit protection and use correctly sized cable glands.

Attribute name	Attribute value
Type	EV Charging Cable
Features	3-core, 6mm², Cat 5 compliant, indoor/outdoor use
Product	EV ULTRA 3C 6.0 POWER AND CAT5
Brand	Doncaster Cables

Doncaster Cables

Since 1984, Doncaster Cables has continually invested in site expansion and machinery. They control every aspect of cable manufacturing, from wire drawing to final testing, allowing them to lead in product development and meet the needs of electricians, consultants, and specifiers.

Free delivery -

NEXT DAY Delivery to Oxfordshire, Buckinghamshire and London via an EVERGY vehicle. Max of 1 ton weight.

Other delivery options via courier -

FREE NEXT DAY (*orders over £50, some batteries and inverters will require an additional fee) via FEDEX. Monday to Friday, up to 30kg, Max box size 50cm x 50cm x 50cm (volume). Orders must be received by 2pm.

Anytime NEXT DAY delivery – under £50 = £6.50 (depending on location, weight and size)

Regardless of spend, additional to any of the above charges –

Before noon (FedEx Priority Express) = Guide Price £15.00 (calulated at checkout)

Before 10am (FedEx First) = Guide Price £20.00 (calulated at checkout)

Delivery of pallets -

Palletised deliveries – Prices starting at £58

Multiple pallet orders can be quoted upon request (price dependent on number of pallets and postcode area)

Special delivery items may vary (non-stock products).

SAME DAY COLLECTION - Click & collect from Evergy Stores (Thame, Oxfordshire).

Products

Related products

EV-Ultra™ Cable 3x4.0mm² Power + Cat 5 Data

Streamline your single-phase EV charger installation with Doncaster Cables EV-Ultra™. This innovative cable combines 3x 4.0mm² power cores (L,N,E) and a Cat 5e data cable within one LSHF sheath, ideal for connecting smart chargers to your EV circuit protection.

Combined Power & Cat 5e Data: Features 3 core 4.0mm² power conductors plus a 4-pair Cat 5e UTP data cable.
Simplified Installation: Reduces installation time by eliminating the need for separate power and data cable runs.
LSHF Sheath: Low Smoke Halogen Free outer sheath enhances safety in case of fire, as detailed in the product datasheet.

Why We Recommend This Product: An efficient and compliant cabling solution for standard domestic smart EV chargers requiring 4.0mm² power and Cat 5e data connectivity. See also the 6.0mm² version or the 2-core data option.

£4.40

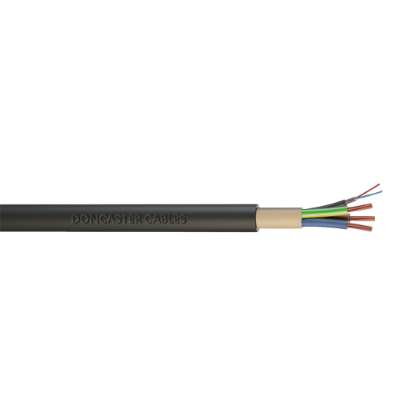

EV-Ultra™ Cable 3x6.0mm² Power + 2 Core Data (Cut Length)

Order the exact length needed of this Doncaster Cables EV-Ultra™ cable, featuring 3 Core 6.0mm² power conductors and a 2 Core screened data pair. Ideal for single-phase EV charger installs requiring basic data communication.

Combined Power & Basic Data: Includes 3 x 6.0mm² power cores (L,N,E) plus a 1-pair 0.5mm² screened data cable (e.g. for RS485).
Cut to Length Service: Minimise waste and purchase only the amount you need for your installation.
LSHF Sheath: Low Smoke Halogen Free construction enhances fire safety, as detailed in product specifications.

Why We Recommend This Product: A convenient cut-length option combining 6.0mm² power with basic 2-core data, suitable for many single-phase EV charger communication needs. For full network data, consider the Cat 5 version.

£5.50

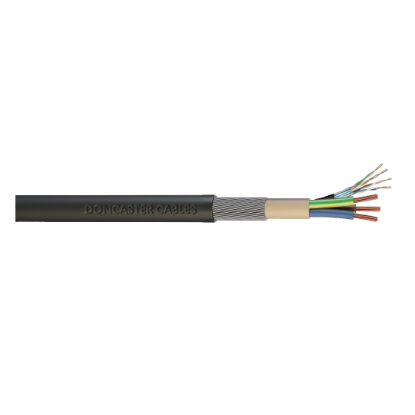

EV-Ultra™ SWA Cable 3x6.0mm² Power + Cat 5 Data
