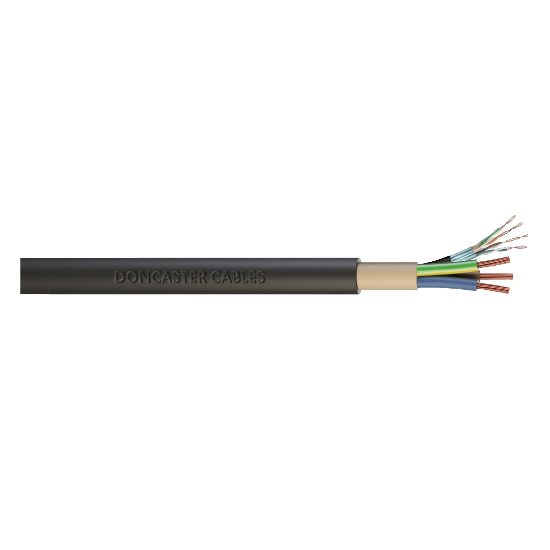

Doncaster Cables EV-Ultra™ 3C 4.0mm² Power + Cat 5 Data Cable

£4.40

Streamline your single-phase EV charger installation with Doncaster Cables EV-Ultra™. This innovative cable combines 3x 4.0mm² power cores (L,N,E) and a Cat 5e data cable within one LSHF sheath, ideal for connecting smart chargers to your EV circuit protection.

Combined Power & Cat 5e Data: Features 3 core 4.0mm² power conductors plus a 4-pair Cat 5e UTP data cable.
Simplified Installation: Reduces installation time by eliminating the need for separate power and data cable runs.
LSHF Sheath: Low Smoke Halogen Free outer sheath enhances safety in case of fire, as detailed in the product datasheet.

Why We Recommend This Product: An efficient and compliant cabling solution for standard domestic smart EV chargers requiring 4.0mm² power and Cat 5e data connectivity. See also the 6.0mm² version or the 2-core data option.

SKU: EV-ULTRA3C4.0CAT5

Free and easy returns | Easy to Install | Professional Installers Available

Doncaster Cables EV-Ultra™: Combined 3 Core 4.0mm² Power + Cat 5e Data Cable

Simplify the wiring for your smart home EV charger installation with the innovative EV-Ultra™ cable from Doncaster Cables. This specialised cable is designed specifically for EV charging points, combining both power and data conductors within a single, easy-to-handle sheath. This particular variant features 3 core 4.0mm² power conductors (Live, Neutral, Earth) suitable for typical 7kW single-phase chargers, alongside an integrated 4-pair Cat 5e UTP data cable for smart functionality and network connectivity.

Efficient Power and Data Transmission

Running separate cables for power and data can be time-consuming and complex. The EV-Ultra™ design streamlines this process significantly. The 4.0mm² copper power conductors ensure efficient power delivery from your EV circuit protection unit to the charger, while the Cat 5e component provides reliable data transmission required by many modern smart chargers for features like load balancing, app control, and firmware updates.

Enhanced Safety with LSHF Sheath

Safety is paramount in electrical installations. This EV-Ultra™ cable features a Low Smoke Halogen Free (LSHF) outer sheath, according to the product datasheet. In the event of a fire, LSHF materials emit significantly less smoke and non-toxic fumes compared to traditional PVC, improving visibility and safety during an evacuation. The cable construction meets relevant standards including power cores to BS EN 50525-2-11 and data cores meeting Cat 5e performance.

Designed for EV Charger Installations

Meeting the requirements of BS 7671 section 722 for EV charging installations, this cable is UV stable and impact resistant, making it suitable for fixed installation both indoors and outdoors (within appropriate containment like conduit). Its combined nature makes routing EV cabling simpler and neater.

Why Evergy Recommend This Product

The EV-Ultra™ 3C 4.0mm² + Cat 5e cable is ideal for many domestic installs:

Combines power (3x4.0mm²) and Cat 5e data in one cable, simplifying installation.
Suitable for typical 7kW single-phase smart EV chargers requiring data connection.
Features an LSHF outer sheath for enhanced fire safety.
Compliant with relevant BS 7671 requirements for EV charging points.
Other options include 3C 6.0mm² + Cat 5, 3C 6.0mm² + 2 Core Data, 3C 6.0mm² + Cat 5 SWA, and 5C 6.0mm² + Cat 5 (3-Phase).

Technical Specifications Overview

Based on the Doncaster Cables EV-Ultra™ datasheet:

Part Code Ref:** EVU3C4PPLSHF
Power Cores: 3 x 4.0mm² (Brown, Blue, Green/Yellow)
Data Cores: 1 x Cat 5e UTP (4 Pair)
Outer Sheath: LSHF (Low Smoke Halogen Free)
Nominal OD:** ~15.1mm (Requires appropriate size glands, e.g. M20 - check specific gland range)

Refer to the full datasheet for complete specifications and compliance details.

Connect Your Smart Charger Efficiently

Choose EV-Ultra™ 3C 4.0mm² + Cat 5e for a streamlined and compliant single-phase smart charger installation. Ensure you select compatible EV circuit protection and appropriate cable glands.

Attribute name	Attribute value
Type	EV Charging Cable
Features	3-core, 4mm², Cat 5 compliant, indoor/outdoor use
Product	EV ULTRA 3C 4.0 POWER AND CAT5
Brand	Doncaster Cables

Doncaster Cables

Since 1984, Doncaster Cables has continually invested in site expansion and machinery. They control every aspect of cable manufacturing, from wire drawing to final testing, allowing them to lead in product development and meet the needs of electricians, consultants, and specifiers.
