BG SyncEV White EV Consumer Unit - 100A MS, 40A DP RCBO, SPD (CFEV5RDAW-01)

Name: BG SyncEV White EV Consumer Unit - 100A MS, 40A DP RCBO, SPD (CFEV5RDAW-01)
SKU: CFEV5RDAW-01
Price: 57.00 GBP
Availability: InStock

£57.00

🐣 5% OFF PRICE SHOWN ABOVE

Use code EASTER5 at checkout
Registered accounts only.

Offer expires Friday 25th April 2025.

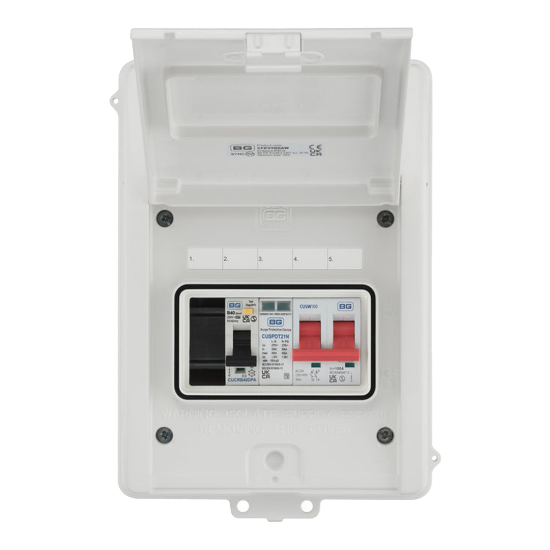

Safeguard your external EV charging point with the BG SyncEV CFEV5RDAW-01 consumer unit in gloss white. This IP65 unit contains a 100A main switch, 40A Type A DP RCBO, and Type 2 SPD, ensuring compliance with 18th Edition Amendment 2 regulations.

Complete EV Circuit Safety: Includes 100A main switch, 40A RCBO protection (overcurrent & RCD), plus surge protection (SPD).
Weatherproof IP65 Design: Durable cast aluminium unit suitable for outdoor installation, as detailed in the product information.
18th Edition Compliant: Meets Amendment 2 requirements specifically for EV charger circuits.

Why We Recommend This Product: The CFEV5RDAW-01 provides a compliant, robust, all-in-one protection solution for external EV chargers, featuring combined RCBO protection in a clean white finish. Also available in grey (CFEV5RDA-01).

SKU: CFEV5RDAW-01

Qty:

Free and easy returns | Easy to Install | Professional Installers Available

BG SyncEV CFEV5RDAW-01: Stylish White IP65 Consumer Unit with RCBO for EV Chargers

Install your home EV charger safely and meet the latest regulations with the BG SyncEV CFEV5RDAW-01 consumer unit. Finished in a clean gloss white (RAL 9016) to complement modern exteriors, this unit is housed in a tough IP65 rated cast aluminium enclosure designed for external use. It provides essential circuit protection specifically for electric vehicle chargers, fully compliant with the 18th Edition Wiring Regulations (BS 7671) Amendment 2.

Integrated EV Charger Protection with RCBO

This pre-configured unit simplifies EV charger circuit protection. The provided datasheet indicates it contains a 100A double pole main switch isolator, a 40A Double Pole Type A RCBO, and an integral Type 2 Surge Protection Device (SPD). The RCBO conveniently combines both 40A overload/short-circuit protection and 30mA Type A RCD fault protection into one device for the final EV charging circuit.

Durable IP65 Construction for Outdoor Use

Built to withstand the elements, the CFEV5RDAW-01 features a 2mm cast aluminium body offering IP65 protection against dust and water jets. Its UV stability, confirmed by the manufacturer's data, ensures the gloss white finish remains durable over time. Flexible installation is aided by multiple M20 knockouts (drillable to M32) for easy EV cabling management.

Compliance with 18th Edition Amendment 2

Ensure your installation meets current standards (BS 7671:2018+A2:2022). This BG SyncEV unit includes the required Type A RCD sensitivity (via the RCBO) and Type 2 SPD surge protection, crucial for EV charging installations. Security is also considered, with built-in padlock and wire seal facilities.

Why Evergy Recommend This Product

The CFEV5RDAW-01 is a superb choice for external EV charger protection:

Offers a fully compliant 18th Edition Amendment 2 solution.
Features a convenient all-in-one 40A DP Type A RCBO device.
Includes essential Type 2 Surge Protection.
Provides robust IP65 cast aluminium construction in a crisp gloss white finish.
Also available in anthracite grey (CFEV5RDA-01). Compare with the RCD/MCB alternative: CFEV5AW-01 (White).

Technical Specifications Overview

Derived from the BG SyncEV product datasheet:

Model: CFEV5RDAW-01
Included Devices: 100A DP Main Switch, 40A DP Type A RCBO (30mA), Type 2 SPD
Enclosure: IP65 Cast Aluminium, Gloss White (RAL 9016)
Compliance: BS7671:2018+A2:2022 (18th Edition Amd 2)

Please refer to the official datasheet or the specification tab for full technical details.

Get Compliant EV Charger Protection

Choose the BG SyncEV CFEV5RDAW-01 for a compliant, durable, and aesthetically pleasing circuit protection solution for your external home EV charger or applicable commercial EV chargers. Don't forget the necessary EV cabling for connection.

Attribute name	Attribute value
Enclosure Rating	IP65
Components Included	100A Main Switch, 40A 30mA Type A RCBO, Type 2 SPD
Dimensions	233mm (H) x 176mm (W) x 100mm (D)
Weight	2.125 kg
Material	Metal with a white finish
Application	Suitable for EV charging installations with emphasis on aesthetics.

CFEV5RDAW-01

BG SyncEV was established in 2009 by two British entrepreneurs focused on improving the world through renewable energies. In 2015, they entered the electric vehicle charging industry, quickly becoming pioneers with the world's smallest EV charger.
