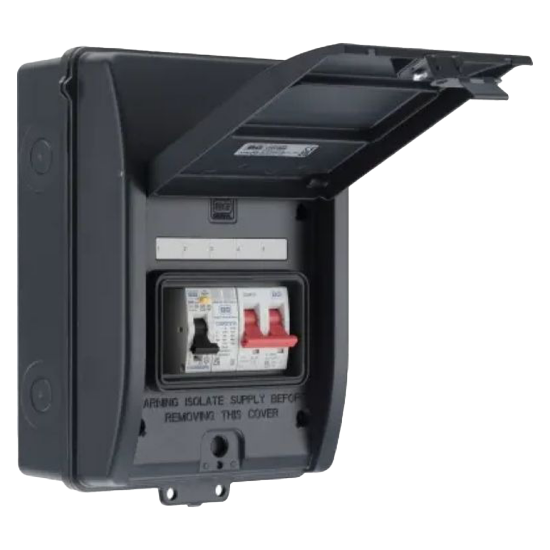

Picture of BG SyncEV Grey EV Consumer Unit - 100A MS, 40A DP RCBO, SPD (CFEV5RDA-01)

BG SyncEV Grey EV Consumer Unit - 100A MS, 40A DP RCBO, SPD (CFEV5RDA-01)

Ā£57.00

šŸ£ 5% OFF PRICE SHOWN ABOVE

Use code EASTER5 at checkout
Registered accounts only.

Offer expires Friday 25th April 2025.


Protect your EV charging circuit with the BG SyncEV CFEV5RDA-01 consumer unit in anthracite grey. This robust IP65 enclosure includes a 100A main switch, 40A Type A DP RCBO, and Type 2 SPD, ensuring 18th Edition Amendment 2 compliance for external installations.

  • All-in-One EV Protection: Combines 100A main switch, 40A RCBO (overcurrent and RCD), and surge protection (SPD).
  • IP65 Weatherproof: Durable cast aluminium construction suitable for outdoor mounting, as confirmed by the product datasheet.
  • 18th Edition Compliant: Designed specifically to meet Amendment 2 requirements for EV charger installations.

Why We Recommend This Product: The CFEV5RDA-01 offers a convenient, compliant, and robust solution for protecting external EV charger circuits, featuring combined RCBO protection in a durable grey finish. Also available in white (CFEV5RDAW-01).

SKU: CFEV5RDA-01
Free and easy returns | Easy to Install | Professional Installers Available
Share:

BG SyncEV CFEV5RDA-01: Robust Grey IP65 Consumer Unit with RCBO for EV Chargers

Ensure the safety and compliance of your home EV charger installation with the BG SyncEV CFEV5RDA-01 consumer unit. Housed in a durable IP65 rated anthracite grey (RAL 7016) cast aluminium enclosure, this unit is specifically designed for external wiring applications, providing essential circuit protection for electric vehicle chargers. It meets the stringent requirements of the 18th Edition Wiring Regulations (BS 7671) Amendment 2.

Comprehensive Circuit Protection with RCBO

This model comes pre-populated with key protective devices tailored for EV charging circuits. According to the technical specifications, it includes a 100A main switch isolator, a 40A Double Pole Type A RCBO (Residual Current Breaker with Overcurrent protection), and a Type 2 Surge Protection Device (SPD). The 40A DP RCBO provides both overload/short-circuit protection and 30mA Type A RCD protection in a single device, simplifying the setup for the final EV charger circuit.

Built for Outdoor Durability (IP65)

Designed for external mounting, the CFEV5RDA-01 features a robust 2mm cast aluminium construction which offers IP65 protection against dust and water ingress. The manufacturer's datasheet also confirms UV stability, ensuring the anthracite grey finish withstands sunlight exposure. Multiple M20 knockouts (drillable to M32) provide flexibility for EV cabling entry and exit.

18th Edition Amendment 2 Compliant

Stay compliant with the latest wiring regulations. This BG SyncEV unit incorporates the necessary protection elements, including Type A RCD sensitivity (within the RCBO) and surge protection (SPD), as required for EV charger installations under BS 7671 Amendment 2. It also features padlock and wire seal facilities for added security.

Why Evergy Recommend This Product

The CFEV5RDA-01 is an excellent choice for protecting external EV charger circuits:

  • Provides a fully compliant solution meeting 18th Edition Amd 2 requirements.
  • Features a combined 40A DP Type A RCBO for streamlined circuit protection.
  • Includes essential Type 2 Surge Protection.
  • Offers robust IP65 cast aluminium construction in a stylish anthracite grey finish.
  • Also available in gloss white (CFEV5RDAW-01) to match different aesthetics. Compare with the RCD/MCB version: CFEV5A-01 (Grey).

Technical Specifications Overview

Based on the BG SyncEV datasheet:

  • Model: CFEV5RDA-01
  • Included Devices: 100A DP Main Switch, 40A DP Type A RCBO (30mA), Type 2 SPD
  • Enclosure: IP65 Cast Aluminium, Anthracite Grey (RAL 7016)
  • Compliance: BS7671:2018+A2:2022 (18th Edition Amd 2)

For full technical details and installation guidance, please refer to the official datasheet or the specification tab.

Secure Your EV Charger Installation

Select the BG SyncEV CFEV5RDA-01 for a compliant, durable, and convenient circuit protection solution for your external home EV charger or commercial EV charger (check load requirements). Ensure you use appropriate EV cabling for connection.

Attribute nameAttribute value
Enclosure RatingIP65
Components Included100A Main Switch, 40A 30mA Type A RCBO, Type 2 SPD
Dimensions233mm (H) x 176mm (W) x 100mm (D)
Weight2.125 kg
MaterialMetal with a grey finish
ApplicationIdeal for EV charging installations without mechanical protection for the supply cable.
