Esdec FlatFix Fusion Low Base Portrait – Flat Roof Solar Support

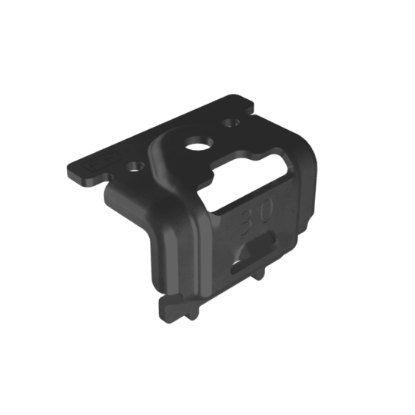

Secure the edges of your solar panels with the Esdec FlatFix Fusion End Clamp 30mm Black. Designed for flat roof systems using the FlatFix Fusion Base Profile, it locks 30mm-framed panels firmly in place while delivering a premium black finish.

• Tailored for solar panels with 30mm frames.
• Provides a secure end-of-row fixing on FlatFix Fusion arrays.
• Black coating offers a smart, professional finish.

Why We Recommend This Product: The correct Esdec clamp for securing 30mm panels — precise, durable, and designed for seamless integration with FlatFix Fusion hardware.

Confirm your clamp size with the Enstall Calculator for Esdec to ensure full system compatibility.

Reinforce your Esdec FlatFix Fusion flat roof solar system with the Stabilizer 1700. This component links base units together, increasing stiffness and distributing load evenly across your solar panel array for long-term stability.

• Connects FlatFix Fusion base assemblies for enhanced rigidity.
• Improves structural integrity and load management.
• Integrates seamlessly with modular FlatFix Fusion layouts.

Why We Recommend This Product: Essential for larger or more exposed installations, providing added structural reinforcement and ensuring compliance with Esdec design standards.

Use the Enstall Calculator to confirm if stabilizers are required for your array and roof conditions.

Maintain aerodynamic stability in your Esdec FlatFix Fusion installation with this 1900mm Rear Wind Deflector, designed for wider solar panels. Fitted to the High Base units, it manages wind uplift and strengthens system performance on flat roofs.

• Controls rear-edge wind loads for wider (~1900mm) panels.
• Improves aerodynamic flow, reducing ballast requirements.
• Essential for system safety and structural compliance.

Why We Recommend This Product: It’s the Esdec-approved rear deflector for wider modules, ensuring stability, safety, and aerodynamic integrity.

Use the Esdec Enstall Calculator to confirm deflector type and quantity for your project.

Safeguard delicate TPO and PVC roof membranes with the essential Esdec FlatFix Fusion Mat. Placed beneath the FlatFix Fusion base units, this protective mat prevents direct contact, abrasion, and potential chemical reactions, ensuring roof integrity for your solar panel installation.

• Provides a protective barrier between mounting system and sensitive roof membranes.
• Designed specifically for use with TPO and PVC roofing materials.
• Helps maintain the roof's warranty and longevity.

Why We Recommend This Product: It's a non-negotiable component when installing FlatFix Fusion on TPO or PVC roofs, critical for preventing damage and ensuring a compliant installation.

Ensure your design includes all necessary protection. The Enstall Calculator for Esdec helps specify components based on roof type.

Build your flat roof solar array with confidence using the Esdec FlatFix Fusion Low Base — the essential foundation of Esdec’s modular system. Lightweight, durable and fast-installing, it supports the High Base and Base Profile to create a stable, non-penetrative mounting structure.

• Primary foundation component for FlatFix Fusion arrays.
• Lightweight, click-fit design speeds up installation.
• Integrates with High Base, Base Profiles and ballast accessories.

Why We Recommend This Product: The FlatFix Fusion Low Base forms the structural backbone of Esdec’s flat-roof system — fast, secure and roof-safe.

Design your system accurately with the free Enstall Calculator for Esdec.

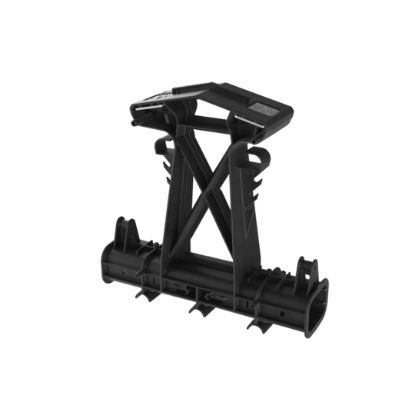

Use the Esdec FlatFix Fusion High Base alongside the Low Base to form the elevated rear support point in standard FlatFix Fusion setups. It establishes the correct tilt angle for your solar panels, boosting output and ensuring long-term array stability.

• Forms the rear (high) mounting point for tilted arrays.
• Connects securely with Low Bases and Base Profiles.
• Ensures the correct tilt for maximum solar efficiency.

Why We Recommend This Product: It’s the essential structural component that defines the tilt and strength of the FlatFix Fusion system, ensuring your panels perform efficiently year-round.

Plan your system layout and tilt angle using the Esdec Enstall Calculator before ordering.

Neatly mount optimisers or microinverters within your Esdec FlatFix Fusion flat roof system using this Light Weight MLPE Clip. It offers a secure fixing point, typically onto the Base Profile, keeping essential Module Level Power Electronics safely in place beneath your solar panels.

• Holds light MLPE devices such as optimisers or microinverters.
• Attaches easily to FlatFix Fusion structural profiles.
• Improves cable management and array organisation.

Why We Recommend This Product: A professional, system-specific solution for integrating MLPEs securely within the FlatFix Fusion array.

Plan your full system layout and accessory requirements with the Esdec Enstall Calculator.

The 1077mm Esdec FlatFix Fusion Base Profile is a vital structural rail linking the Low Base and High Base components. It creates the stable, correctly spaced framework needed to support your solar panels and ballast safely on flat roofs.

• Connects FlatFix Fusion base units into a rigid, aligned structure.
• Supports panel clamping and ballast placement for long-term stability.
• Engineered from lightweight aluminium for strength and corrosion resistance.

Why We Recommend This Product: It’s the backbone of every FlatFix Fusion installation — delivering precise alignment and dependable load distribution across your array.

Design your array layout accurately using the Esdec Enstall Calculator to determine required Base Profiles and ballast.

Strengthen the stability and aerodynamics of your Esdec FlatFix Fusion flat roof system with the 1700mm Rear Wind Deflector in black. Fitted to the High Base units, it protects your solar panels from wind uplift while creating a professional, enclosed rear finish.

• Improves aerodynamics, reducing ballast requirements.
• Completes the rear shielding of FlatFix Fusion arrays.
• Clicks securely onto High Base units for easy installation.

Why We Recommend This Product: It’s a key aerodynamic and structural component for secure, compliant FlatFix Fusion installations.

Use the Esdec Enstall Calculator to confirm the required deflectors and ballast for your specific project.

Ensure long-term stability for your non-penetrating Esdec FlatFix Fusion flat roof system with the 1700 Ballast Container. Designed to contain standard ballast materials such as paving slabs, it locks neatly between the Low and High Base units to secure your solar panels against uplift.

• Holds and stabilises ballast for non-penetrating systems.
• Fits precisely within the FlatFix Fusion framework.
• Crucial for meeting calculated ballast requirements.

Why We Recommend This Product: It’s the official Esdec solution for holding ballast securely in place, protecting your roof and ensuring long-term array stability.

Use the Esdec Enstall Calculator to confirm ballast quantity and placement for your project.

Protect and streamline the left edge of your Esdec FlatFix Fusion array with this Black Wind Deflector, designed for systems using the 1077mm (or 1030mm) Base Profile. It improves aerodynamics and stability for your solar panels while creating a professional, enclosed finish.

• Shields the left flank from wind uplift and turbulence.
• Provides a smooth, cohesive side finish.
• Clicks directly into the FlatFix Fusion framework.

Why We Recommend This Product: A key aerodynamic component, it enhances stability and completes the system’s side protection for long-term reliability.

Use the Esdec Enstall Calculator to confirm if side deflectors are required for your layout.

Complete the aerodynamic protection of your Esdec FlatFix Fusion flat roof system with this Black Right Wind Deflector. Designed for installations using the 1077mm or 1030mm Base Profile, it safeguards the right edge of your solar panels from lateral wind pressure while giving a smart, enclosed finish.

• Provides aerodynamic protection on the right flank of the array.
• Improves system stability and overall wind resistance.
• Clicks securely onto compatible FlatFix Fusion base units.

Why We Recommend This Product: It’s an essential component for optimising wind flow and completing the aerodynamic design of a FlatFix Fusion installation.

Use the Esdec Enstall Calculator to confirm all required side and rear deflectors for your system layout.

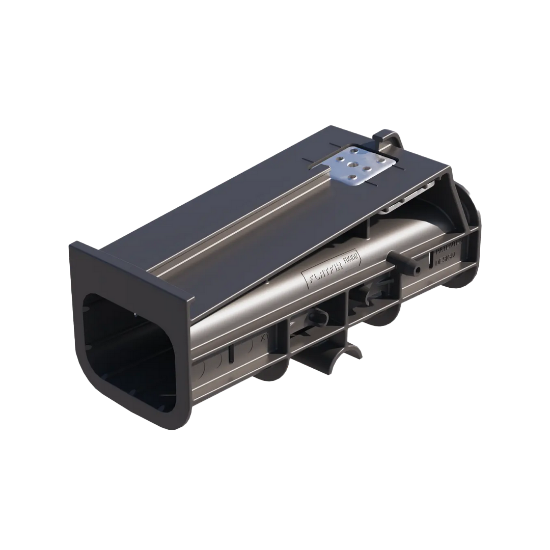

The Esdec FlatFix Fusion Low Base Portrait forms the lower support point for vertically mounted solar panels on flat roofs. Designed for the FlatFix Fusion system, it works with the High Base Portrait to create a stable, optimised tilt for portrait arrays.

• Lower base unit: Key front support for portrait FlatFix Fusion setups.
• Quick assembly: Clicks directly into High Base Portrait and Base Profiles.
• Durable construction: Built for long-term flat-roof performance.

Installer tip: Use the Enstall Calculator for Esdec to confirm base quantities for your portrait layout.

Build a reliable portrait solar array on flat roofs with the Esdec FlatFix Fusion High Base. This elevated rear support pairs with the Low Base Portrait to create the correct tilt angle and structural stability for vertically mounted solar panels.

• Rear support component for portrait-oriented FlatFix Fusion systems.
• Connects with Low Base Portrait and Base Profiles.
• Provides the tilt height required for stable vertical mounting.

Why We Recommend This Product: It’s the dedicated high base for portrait layouts within the FlatFix Fusion system, essential for achieving correct geometry and system performance.

Plan your array with precision using the Enstall Calculator for Esdec.

Secure the outer solar panels in your Esdec FlatFix Fusion array with this 30mm End Clamp in standard aluminium finish. Designed for 30mm frame heights, it provides a strong and reliable edge fixing onto the FlatFix Fusion Base Profile, completing the structural framework.

• Engineered for panels with 30mm frame height.
• Clamps start and end panels securely in each row.
• Standard aluminium finish complements mill-finish profiles.

Why We Recommend This Product: It’s the essential edge clamp for securing 30mm framed solar panels within FlatFix Fusion systems—robust, precise, and fully compatible.

Use the Esdec Enstall Calculator to confirm clamp sizes and quantities for your array design.

The Esdec FlatFix Fusion Base Plate Bracket is the essential connector that links the Base Plate to the main Low or High Base units in specialised FlatFix Fusion installations. It ensures a secure mechanical bond for hybrid or fixed solar systems on flat roofs.

• Connects Base Plates to main Base Units within the Fusion system.
• Maintains alignment and load transfer integrity.
• Essential for hybrid or mechanically fixed system configurations.

Why We Recommend This Product: It’s the genuine Esdec-engineered link that allows Base Plates to integrate safely into the FlatFix Fusion structure, preserving strength and warranty compliance.

Only required for designs using Base Plates. Confirm via the Esdec Enstall Calculator or structural plans.

The Esdec FlatFix Fusion Base Plate provides a stable, load-bearing platform for specialised FlatFix Fusion installations. Used with the Base Plate Bracket, it enables mechanical anchoring or enhanced load distribution for solar panels on challenging roofs.

• Supports direct roof fixing or engineered load distribution.
• Essential for hybrid or fully fixed FlatFix Fusion systems.
• Connects via the dedicated Base Plate Bracket component.

Why We Recommend This Product: It’s the genuine Esdec solution for hybrid, fixed, or specially engineered flat roof arrays where additional anchoring or structural support is required.

Use the Esdec Enstall Calculator or consult project engineering to confirm if Base Plates are specified for your design.
