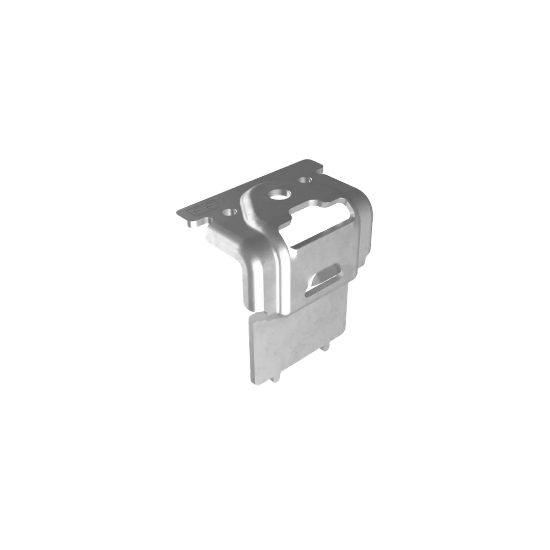

Esdec FlatFix Fusion End Clamp 30mm - Standard Finish: Reliable Edge Clamping

Provide a secure mechanical fixing for the edge panels in your Esdec FlatFix Fusion flat roof array with this 30mm End Clamp in a standard aluminium finish. Specifically engineered for solar panels with a frame height of 30mm, this clamp mounts onto the FlatFix Fusion Base Profile, ensuring the first and last panels of each row are held securely. Proper clamping is fundamental to the structural integrity needed for long-term, reliable solar energy generation, helping you secure lower energy costs.

Precision Fit for 30mm Panel Frames

Using end clamps matched precisely to your panel frame height is vital for a secure installation:

• Accurate Sizing: Designed specifically for 30mm panel frames, providing the correct clamping force without damaging the panel. Always confirm your panel's frame height.
• Edge Application: Used at the start and end of each row to secure the outer panels, working alongside Universal Mid Clamps (available with bonding) which sit between panels.
• Standard Finish: The natural aluminium finish matches standard Esdec profiles and other mill-finish components. Also available in Black.

Secure Mechanical Hold

This end clamp ensures the panels at the edges of the array are firmly fixed against wind loads and thermal movement. It attaches to the Base Profile using the appropriate Esdec fastener (like the M6x12 screw, check spec), contributing to the overall stability of the structure built upon the Low and High Base units.

Esdec Quality and Durability

Manufactured from high-quality aluminium according to Esdec's specifications, this clamp offers excellent corrosion resistance and durability for long-term rooftop exposure. As a genuine Esdec part, its use ensures compliance with the system design and warranty requirements.

Why Evergy Recommend This Product

For FlatFix Fusion installations using 30mm framed panels where a standard finish is desired, this end clamp is the correct component. We recommend it because:

• Correct Fit: Engineered specifically for 30mm panel frames ensures secure, safe clamping.
• System Compatible: Designed for easy integration with FlatFix Fusion Base Profiles.
• Reliable Fixing: Provides strong mechanical hold for edge panels.
• Genuine Component: Ensures Esdec quality and warranty compliance.

Key Technical Details

• Component: End Clamp
• Panel Frame Height Compatibility: 30mm
• Finish: Standard (Mill Finish Aluminium)
• System: Esdec FlatFix Fusion
• Material: Aluminium (Confirm via datasheet)

Ensure this clamp size matches your solar panel frame height.

Select Your Clamps Carefully

Choosing the right size end clamps is crucial. Verify your panel frame dimensions and use the Enstall Calculator for Esdec to assist with component selection. Add the required number of 30mm Standard Finish End Clamps (usually two per row) to your basket, along with compatible mid clamps, profiles, bases, ballast, and other FlatFix Fusion system parts.
