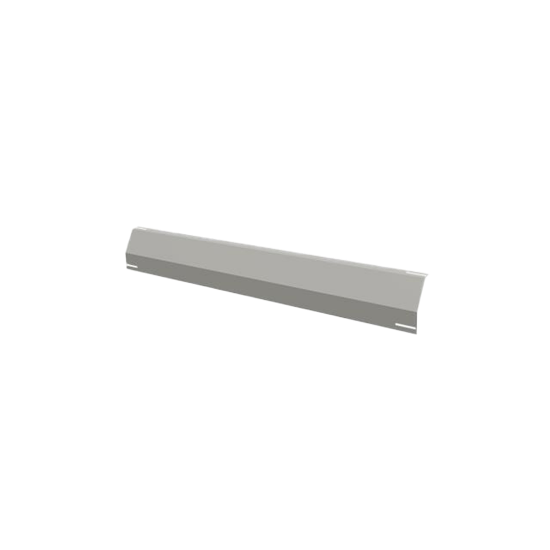

Esdec FlatFix Fusion Rear Wind Deflector 1900mm: Aerodynamic Stability for Wider Panel Arrays

Optimise the stability and performance of your Esdec FlatFix Fusion flat roof solar installation, particularly when using wider format solar panels, with the 1900mm Rear Wind Deflector. This essential component attaches to the FlatFix Fusion High Base units along the rear edge of the array, playing a critical role in managing wind uplift forces. A properly designed system with correct aerodynamic shielding ensures long-term safety and reliable energy generation, crucial for managing your energy costs.

Managing Wind Loads for Larger Formats

As solar panel dimensions evolve, mounting systems must adapt. This 1900mm deflector is designed to provide adequate coverage and aerodynamic performance for installations where standard deflectors (like the 1700mm version) may not suffice:

• Extended Coverage: Sized to match the width of larger format solar panels commonly used in commercial or utility projects.
• Wind Uplift Reduction: Helps streamline airflow over the array, reducing negative pressure zones and uplift forces on the panels and structure.
• Ballast Optimisation: Effective aerodynamic design, calculated using the Enstall tool, can potentially minimise the overall ballast weight required, reducing roof load.

Integral Part of the FlatFix Fusion System

This deflector integrates seamlessly with the modular FlatFix Fusion system. It clicks or fastens easily onto the High Base units, working in conjunction with Side Wind Deflectors, Stabilizers, and the Ballast Containers to form a complete, structurally sound installation.

Durable and Weatherproof Construction

Manufactured from robust, UV-resistant materials according to Esdec's high-quality specifications, the 1900mm Rear Wind Deflector is built to withstand long-term exposure on flat roofs. Its use is critical for complying with the calculated structural requirements and maintaining the Esdec system warranty.

Why Evergy Recommend This Product

When your project design using the Enstall Calculator specifies the 1900mm Rear Wind Deflector (due to panel size or layout), using it is essential. We recommend it because:

• Correct Sizing: Provides appropriate aerodynamic coverage for wider solar panels or specific layouts.
• Structural Necessity: Integral to the wind load calculations and overall stability of the array.
• System Compliance: Ensures the installation meets Esdec's engineering requirements.
• Proven Performance: Part of the reliable and widely used FlatFix Fusion system.

Key Technical Details

• Component: Rear Wind Deflector
• Nominal Width: 1900mm
• System: Esdec FlatFix Fusion
• Function: Manages wind loads for wider panels/layouts
• Material: Durable, UV-resistant composite/plastic

Always rely on the project-specific output from the Esdec Enstall Calculator for component selection.

Ensure Accurate Aerodynamic Design

Using the wrong size deflectors can compromise the safety and stability of your flat roof array. Always use the Enstall Calculator for Esdec to generate a design based on your specific site conditions, building height, and chosen solar panels. It will specify the exact type and quantity of all required deflectors. Add the calculated number of 1900mm Rear Wind Deflectors to your basket along with all other necessary FlatFix Fusion components.
