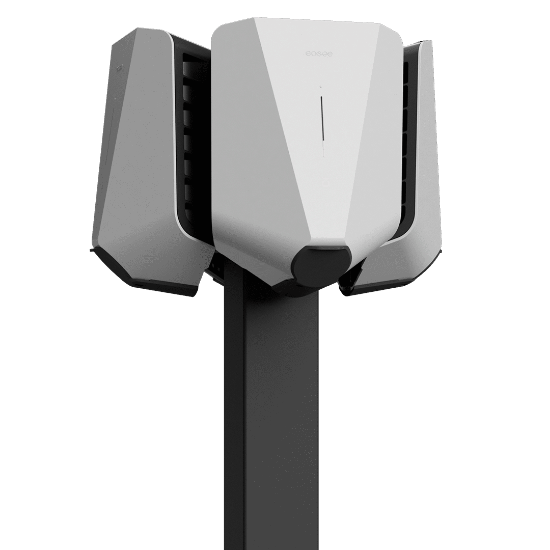

Easee Base 4-Way (90324): High-Density Mounting Post for Four Easee EV Chargers

Maximise your EV charging provision with the Easee Base 4-Way mounting post. This heavy-duty post is the ultimate solution for creating high-density charging hubs, allowing you to mount up to four Easee One or Easee Charge EV chargers on a single post structure. It's perfectly suited for commercial car parks, fleet depots, apartment blocks, or any location requiring multiple charging points with efficient use of space.

Mount Up To Four Chargers

This top-tier configuration of the modular Easee Base system is designed to accommodate an Easee Charging Robot on all four sides of the column. The installation guide details the inclusion of specific top and bottom frames to facilitate this quadruple mounting arrangement, offering maximum charging availability from a single installation point.

Streamlined Wiring with Power Rail

Despite hosting four chargers, wiring is kept manageable thanks to the integrated Power Rail connection box. This internal component provides clearly marked terminals for the main power feed (up to 25mm² cables) and simplifies connecting the four individual charger cables (up to 6mm² each, potentially requiring two cables per terminal as shown in the guide). The Power Rail also enables onward power connection to subsequent posts in larger installations.

Robust Foundation and Construction

Built to support the weight and usage demands of four chargers, the Easee Base 4-Way is constructed from durable materials. Installation requires a solid mechanical foundation; the included adapter plate fits standard 160x160mm c/c groundwork, ensuring broad compatibility. The post can be oriented in 45° increments for optimal charger positioning, as indicated in the installation instructions.

Why Evergy Recommend This Product

The Easee Base 4-Way is the ultimate space-saving solution:

• Provides mounting for up to four Easee One or Easee Charge units on a single post.
• Ideal for maximising charging density in car parks and commercial locations.
• Features the integrated Power Rail for efficient wiring of multiple chargers and posts.
• Offers robust construction suitable for demanding environments.
• If you require fewer charging points per post, consider the Easee Base 1-Way or Easee Base 2-Way.

Technical Specifications Overview

Based on the Easee Base installation guide:

• Model: Easee Base 4-Way (90324)
• Capacity: Mounts 4 x Easee Chargers
• Includes: Column, Adapter Plate, Power Rail, Top/Bottom Frames, Top Plate, Fixings
• Foundation Compatibility: 160x160mm c/c (Adapter Plate) or 70x70mm c/c (Column Base)

Requires suitable mechanical foundation for installation. Chargers not included.

Create Your Multi-Charger Hub

Deploy high-density EV charging efficiently with the Easee Base 4-Way post. Perfect for kitting out commercial charging locations. Combine with four Easee Charge units and ensure professional installation with appropriate electrical cabling and groundwork.
