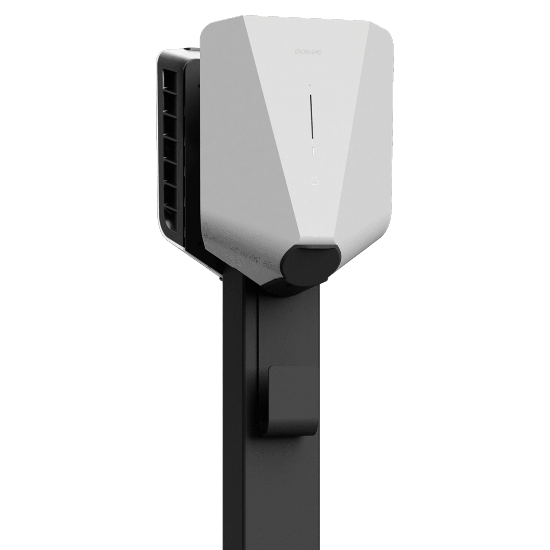

Easee Base 2-Way (90323): Robust Mounting Post for Two Easee EV Chargers

Create a convenient dual charging station with the Easee Base 2-Way mounting post. Designed specifically for the Easee ecosystem, this sturdy post allows you to mount two Easee One or Easee Charge EV chargers back-to-back. It's an ideal solution for shared driveways, small office car parks, or any location needing two adjacent charging points without multiple wall installations.

Efficient Dual Charger Setup

This 2-Way configuration of the modular Easee Base system provides mounting plates for installing chargers on opposite sides of the central column. According to the installation guide, this allows for a compact and efficient setup, serving two parking bays from a single foundation point, saving space and installation costs compared to two separate posts.

Simplified Wiring with Integrated Power Rail

Installation is streamlined thanks to the built-in Power Rail connection box located inside the post. This provides dedicated terminals for the incoming power supply (up to 25mm² cables) and the connections to both chargers (up to 6mm² cables per charger). The Power Rail design also facilitates daisy-chaining power to subsequent posts if required, as mentioned in the product documentation.

Durable and Adaptable Installation

Constructed from high-quality materials for durability, the Easee Base is built to last. An included adapter plate ensures compatibility with standard 160x160mm centre-to-centre foundations, making groundwork straightforward. The column itself offers installation flexibility, allowing for rotation in 45° increments to achieve the desired charger orientation, as shown in the guide.

Why Evergy Recommend This Product

The Easee Base 2-Way is highly suitable for:

• Mounting two Easee One or Easee Charge chargers efficiently on one post.
• Locations requiring adjacent charging points, such as shared drives or small car parks.
• Installations where simplified wiring and potential series connection are advantageous.
• Robust, free-standing charger mounting away from walls.
• Need to mount just one, or up to four chargers? See the Easee Base 1-Way or Easee Base 4-Way.

Technical Specifications Overview

Based on the Easee Base installation guide:

• Model: Easee Base 2-Way (90323)
• Capacity: Mounts 2 x Easee Chargers (back-to-back)
• Includes: Column, Adapter Plate, Power Rail, 2x Mounting Plates, Fixings
• Foundation Compatibility: 160x160mm c/c (Adapter Plate) or 70x70mm c/c (Column Base)

Requires suitable mechanical foundation for installation. Chargers not included.

Establish Your Dual Charging Point

Opt for the Easee Base 2-Way for an elegant and efficient dual charger installation. Pair with two Easee chargers and ensure correct electrical cabling and groundwork.
