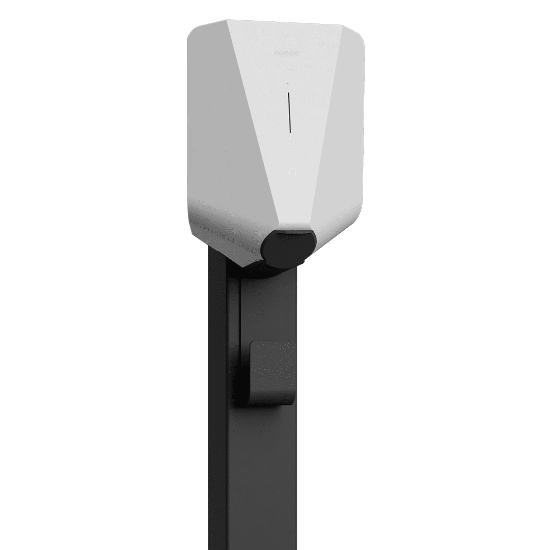

Easee Base 1-Way (90322): Elegant Mounting Post for a Single Easee EV Charger

Present your Easee One or Easee Charge EV charger with style and stability using the Easee Base 1-Way mounting post. This robust post provides a dedicated, free-standing solution when wall mounting isn't feasible or preferred. It's perfect for driveways, car parks, or any location requiring a standalone charging point.

Designed for Single Charger Installations

This specific configuration of the modular Easee Base system is designed to mount a single Easee Charging Robot. The installation guide shows it includes a dedicated mounting plate for the charger's backplate and a blind cover for the unused side, ensuring a clean and professional finish. It provides a secure and purpose-built platform for your charger.

Integrated Power Rail for Simplified Wiring

Inside the column sits the integrated Power Rail connection box. This feature significantly simplifies installation, providing clear terminals for connecting the incoming supply (cables up to 25mm², as per the guide) and the outgoing connection to the charger (up to 6mm² cables). As detailed in the product information, the Power Rail also allows multiple posts to be connected in series from a single circuit, facilitating scalable installations.

Durable Build and Flexible Foundation

Built from quality materials for longevity, the Easee Base is designed to withstand various weather conditions (though the installation guide advises against high-pressure washing). It comes with an adapter plate designed to fit standard 160x160mm c/c foundations, ensuring compatibility with common groundworks. The post can also be rotated in 45° increments during installation for optimal orientation.

Why Evergy Recommend This Product

The Easee Base 1-Way is the ideal mounting solution when:

• You need to install a single Easee One or Easee Charge charger away from a wall.
• A stylish, robust, and dedicated post is desired.
• Simplified wiring and potential future expansion via series connection are beneficial.
• For mounting multiple chargers on a single post, explore the Easee Base 2-Way or Easee Base 4-Way options.

Technical Specifications Overview

Based on the Easee Base installation guide:

• Model: Easee Base 1-Way (90322)
• Capacity: Mounts 1 x Easee Charger
• Includes: Column, Adapter Plate, Power Rail, 1x Mounting Plate, 1x Blind Cover, Fixings
• Foundation Compatibility: 160x160mm c/c (Adapter Plate) or 70x70mm c/c (Column Base)

Requires suitable mechanical foundation for installation. Charger not included.

Install Your Easee Charger Anywhere

Choose the Easee Base 1-Way for a flexible and professional single charger installation. Combine with your preferred Easee charger and ensure correct electrical cabling for a complete setup.
