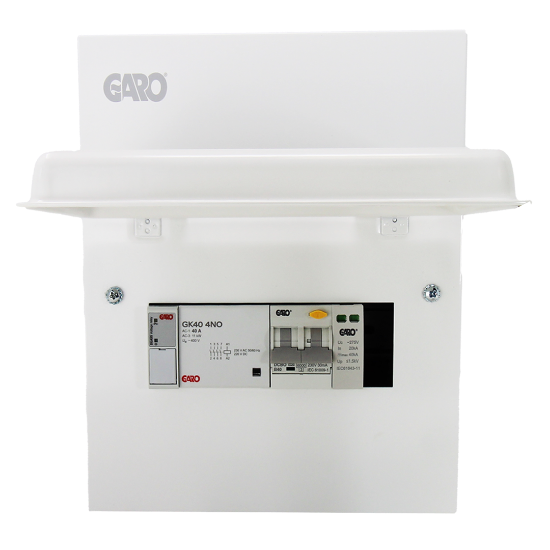

Garo GS8EV40PME 40A Type A RCBO + SPD with PME Fault Detection

Comprehensive Electrical Protection for EV Chargers

The Garo GS8EV40PME 40A Type A RCBO + SPD with PME Fault Detection Unit offers superior protection against electric shock in single-phase installations. Designed to comply with the latest regulations, this device disconnects the vehicle from live conductors and protective earth, following Regulation 543.3.3.101(ii). Its isolation functionality adheres to Table 537.4, ensuring safe operation in both residential and commercial settings.

This unit is engineered specifically for EV chargers with DC leakage protection, enhancing the safety and reliability of your electric vehicle charging setup. With an operational voltage range between 207V and 253V, the device ensures smooth performance and can only be reset under safe voltage conditions.

Key Features and Specifications

• Rated Current: 40A
• Rated Voltage: 230V AC
• Frequency: 50/60 Hz
• Short Circuit Protection: 16kA rms at 250V
• Main Device: 40A RCBO Type A
• Additional Devices: PME Fault Detection
• Operation Voltage Range: 213V - 253V (within 4 seconds)
• Degree of Protection: IP40
• Dimensions: 260mm (H) x 222mm (W) x 116mm (D)
• Ambient Temperature: -25°C to +55°C
• Storage Temperature: -35°C to +55°C
• Terminals: 35mm
• Material: Metal
• Standard Compliance: EN 61439-3, BS 7671

This unit comes with a 5-year warranty on mechanical components and a 2-year warranty on electronic components, offering long-term peace of mind for your EV charging needs.
