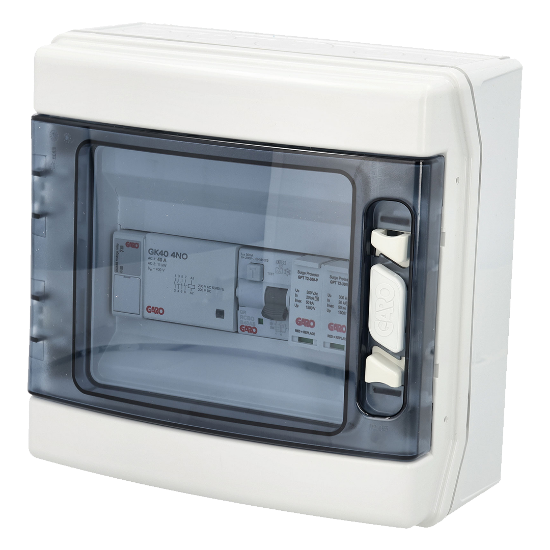

Garo GCS8EV40PME IP65 40A Type A RCBO + SPD PME FAULT DETECTION UNIT

This IP65-rated unit provides essential safety for your single-phase EV charging installation. It combines a 40A Type A RCBO with a PME fault detection unit and surge protection, ensuring complete electrical isolation in case of a fault.

Key Features:

• Enhanced Safety: Protects against electric shock by disconnecting the vehicle from the power supply and earth in accordance with safety regulations (Regulation 543.3.3.101(ii)).
• PME Fault Detection: Detects and isolates potentially dangerous faults in the Protective Multiple Earthing (PME) system.
• Surge Protection: Safeguards your charger and vehicle from voltage spikes.
• Reliable Operation: Automatically resets only when the voltage is within a safe range (207V - 253V).
• Durable Design: IP65 weatherproof enclosure for outdoor use.
• Easy Installation: Compact design with 8 total ways.

Technical Specifications:

• Rated Current: 40A
• Rated Voltage: 230V AC
• Frequency: 50/60Hz
• Rated Conditional Short Circuit: 16kA rms at 250V
• Main Device: 40A RCBO Type A
• Additional Devices: PME Fault detection & Surge protection
• Operation: 213V – 253V (4 seconds)
• Degree of protection: IP65
• Dimensions (HxWxD): 231mm x 238mm x 118mm
• Ambient Temperature: -25°C to +55°C
• Storage Temperature: -35°C to +55°C
• Terminals: 25mm
• Material: Plastic
• Standards: EN 61439-3, BS 7671

Warranty:

• 5 years on mechanical components
• 2 years on electronic components

Ideal for:

EV chargers with DC leakage protection.

This product ensures the safety and reliability of your EV charging setup. Invest in peace of mind with the GARO GCS8EV40PME.
