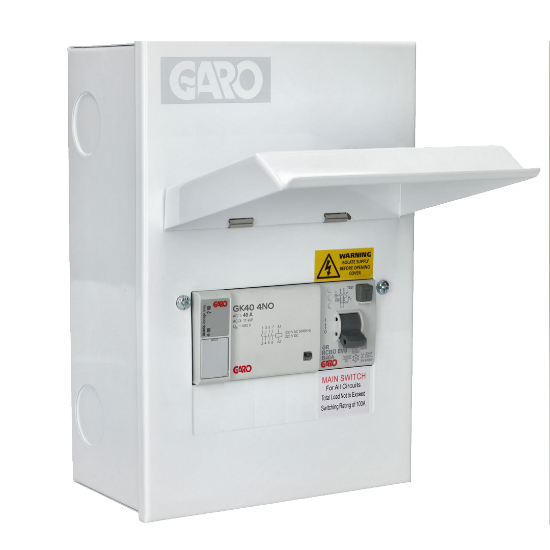

Garo G6EV40PME 40A EV Consumer Unit with Type A RCBO & PME Fault Detection

The Garo G6EV40PME 40A EV Consumer Unit is expertly designed to provide enhanced electrical protection for single-phase EV charging installations. Engineered to meet the rigorous standards of Regulation 543.3.101, this unit ensures the vehicle is safely disconnected from both live conductors and protective earth in the event of a fault, offering essential protection against electric shock. Equipped with a premium RCBO that supports high-capacity EV batteries (100kW / 110kW), it’s an ideal solution for modern electric vehicle setups.

This consumer unit also features PME fault detection and a robust 5-year warranty on mechanical components, and a 2-year warranty on electronic components, giving you peace of mind for years to come.

Key Features

• 40A RCBO Type A: Built to safeguard high-capacity EV batteries, this upgraded RCBO provides seamless, reliable protection.
• Fault Detection: PME fault detection offers additional security by quickly identifying and disconnecting the vehicle from live circuits.

Designed for optimal operation within a voltage range of 207V - 253V, the G6EV40PME maintains a high level of accuracy and protection. With an IP40 rating, this unit is ideal for indoor applications.

Technical Specifications

• Rated Current: 40A
• Rated Voltage: 230 V AC
• Frequency: 50/60 Hz
• Short Circuit Capacity: 16kA rms at 250V (Annex ZB)
• Dimensions: Height 235mm, Width 161mm, Depth 110mm
• Temperature Range: -25°C to +55°C (Ambient), -35°C to +55°C (Storage)
• Material: Durable metal construction with EN 61439-3 and BS 7671 compliance.

Peace of Mind with Comprehensive Warranty

• Mechanical Components Warranty: 5 Years
• Electronic Components Warranty: 2 Years
