ESDEC

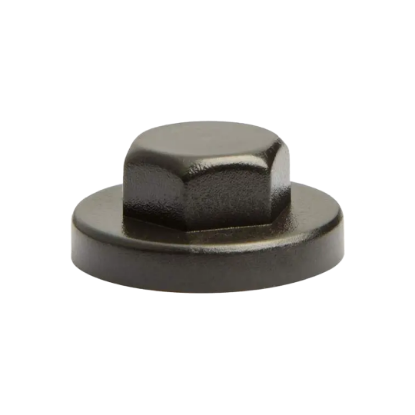

Achieve a seamless, all-black look for your Esdec FlatFix Fusion solar array with the Black Colour Cap. This small accessory is designed to push-fit over specific exposed fastener heads (like certain M6 screws), concealing them for a cleaner aesthetic finish.

• Covers specific Esdec fastener heads for a neater appearance.
• Black colour matches black clamps, deflectors, and panels.
• Simple push-fit installation.

Why We Recommend This Product: It’s a simple, inexpensive way to enhance the final visual appeal of a FlatFix Fusion installation, particularly important for visible arrays or achieving an all-black look.

Check Esdec documentation or the Enstall Calculator's Bill of Materials to see if these caps are specified for your fasteners.

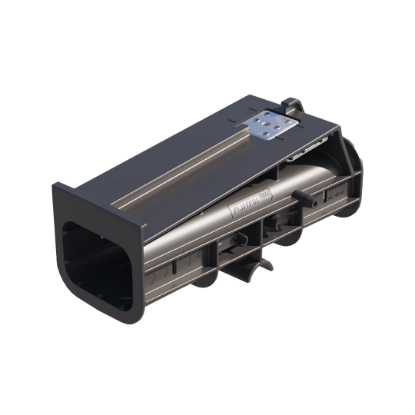

This Esdec FlatFix Fusion Low Base is specifically designed for building solar arrays in a portrait orientation on flat roofs. It serves as the lower support point, working in conjunction with the High Base Portrait to create the necessary tilt and framework for securing your solar panels vertically.

• Core lower base unit for portrait-oriented FlatFix Fusion arrays.
• Connects easily with High Base Portrait and Base Profiles.
• Facilitates stable mounting of panels vertically on flat roofs.

Why We Recommend This Product: It's the fundamental lower component required when designing a FlatFix Fusion system specifically for portrait panel layouts, ensuring correct system geometry.

Planning a portrait array? The Enstall Calculator for Esdec helps design layouts for both portrait and landscape orientations.

This Esdec FlatFix Fusion High Base is specifically designed for building solar arrays in a portrait orientation on flat roofs. It serves as the higher rear support point, working with the Low Base Portrait to establish the correct tilt and framework for your vertically oriented solar panels.

• Core elevated base unit for portrait-oriented FlatFix Fusion arrays.
• Connects easily with Low Base Portrait and Base Profiles.
• Essential for creating the required tilt angle in portrait setups.

Why We Recommend This Product: It's the fundamental upper component required when designing a FlatFix Fusion system specifically for portrait panel layouts, ensuring correct system geometry and stability.

Planning a portrait array? The Enstall Calculator for Esdec helps design layouts for both portrait and landscape orientations.

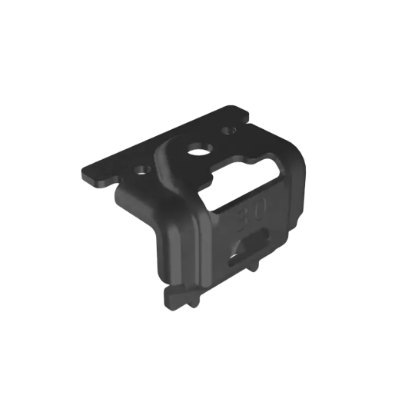

Secure the start and end solar panels in each row of your Esdec FlatFix Fusion installation with this standard finish End Clamp, designed for panels with a 30mm frame height. It provides a reliable grip, attaching to the Base Profile for a complete row assembly.

• Securely clamps start/end panels (30mm frame height) in FlatFix Fusion rows.
• Standard aluminium finish matches mill-finish profiles and bases.
• Ensures panels are held firmly at the array edges.

Why We Recommend This Product: It's the essential Esdec clamp for securing the edges of panel rows using 30mm frames within the FlatFix Fusion system, offering reliable performance and system compatibility.

Order the correct clamp size for your panels. The Enstall Calculator helps confirm component compatibility for your specific project.

This Esdec FlatFix Fusion Base Plate is utilised in specific scenarios where direct fixing or unique load distribution is required for a FlatFix Fusion installation. It connects to the system's base units via the separate Base Plate Bracket, providing a platform for anchoring your solar panel array.

• Provides a stable platform for specific fixing or load requirements.
• Used in conjunction with the FlatFix Fusion Base Plate Bracket.
• Applicable for hybrid (fixed & ballasted) or fully fixed system designs.

Why We Recommend This Product: It's the genuine Esdec component necessary for specific, engineered FlatFix Fusion configurations that require direct roof anchoring or specialised support via a base plate.

Note: Not typically required for standard ballasted systems. Use the Enstall Calculator or consult project engineering for specification.

Integrate the FlatFix Fusion Base Plate into your solar array using this purpose-designed Base Plate Bracket. It provides the secure connection between the base plate (used for specific fixing or support scenarios) and the main Low or High Base units of the FlatFix Fusion system.

• Securely connects the FlatFix Fusion Base Plate to system Base Units.
• Essential for configurations utilising the optional Base Plate.
• Maintains structural integrity within the modular system.

Why We Recommend This Product: It's the genuine Esdec component required to correctly and securely integrate the FlatFix Fusion Base Plate into the main mounting structure when needed.

Required only for specific configurations. The Enstall Calculator or Esdec manuals specify when Base Plates & Brackets are necessary.
