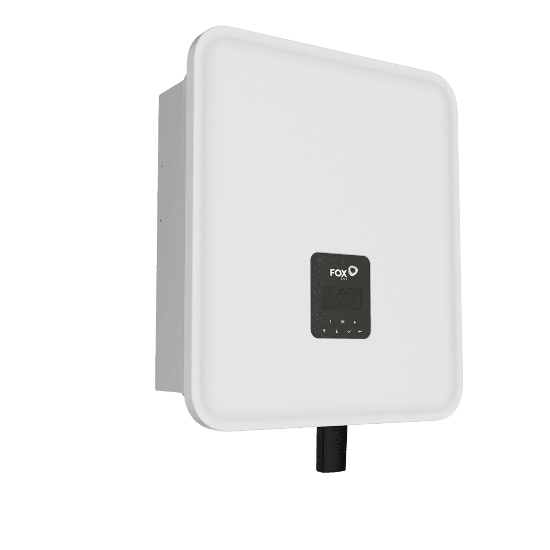

Fox ESS H3-6.0-E 6 kW Three-Phase Hybrid Solar Inverter

£1249.00

The Fox ESS H3-6.0-E 6 kW Three-Phase Hybrid Solar Inverter delivers dependable performance for larger UK homes and light-commercial sites, pairing high conversion efficiency with smooth three-phase output. Dual MPPT trackers operate across a wide 160 – 950 V window to optimise split strings and mixed orientations common on British rooftops.

With a 9,000 W maximum PV input and 6,000 W rated AC output, the H3-6.0-E balances headroom and efficiency for everyday use. The rugged IP65 enclosure and quiet (<45 dB) cooling suit outdoor or plant-room installation, while FoxCloud provides real-time monitoring via integrated Wi-Fi/LAN (optional 4G). Compliant with G99 and certified to EN 62109, it integrates cleanly with Fox high-voltage LFP batteries for flexible storage expansion.

Contact Evergy for product guidance or system compatibility support.

SKU: H3-6.0-E

Qty:

Free and easy returns | Easy to Install | Professional Installers Available

The Fox ESS H3-6.0-E 6 kW Three-Phase Hybrid Solar Inverter is a compact, high-efficiency option in the H3 range, engineered for British photovoltaic systems that require reliable three-phase output without oversizing. With up to 9,000 W PV input and a 6,000 W rated AC output, it’s ideal for larger homes, small farms and light-commercial projects seeking dependable yield and battery-ready flexibility.

High-Efficiency Performance for British PV Systems

Dual MPPT trackers and a broad 160 – 950 V operating window keep strings close to their optimum point through shifting irradiance and orientations. Peak conversion efficiency reaches 98.5 % (Euro 97.8 %), reducing losses from DC to AC and improving generation during low-light mornings, overcast days and winter months typical across the UK.

Built for Reliability & Protection

The H3-6.0-E pairs an IP65 weather-sealed enclosure with quiet (<45 dB) fan-assisted cooling for stable operation indoors or out. Safety systems include residual-current and insulation monitoring, anti-islanding protection and integrated surge arrestors (Type II DC / Type II AC). It is certified to EN 62109-1 & -2 and compliant with G99 for straightforward UK grid connection.

Key Features

6 kW three-phase AC output with 6,600 VA peak (60 s)
Dual MPPT with a 160 – 950 V window for flexible string design
98.5 % peak / 97.8 % Euro efficiency for strong real-world yield
IP65 enclosure; <45 dB operation for outdoor or plant-room mounting
Integrated Type II surge protection and comprehensive grid safety logic
FoxCloud monitoring via Wi-Fi/LAN (optional 4G)

If you’re wondering how the H3-6.0-E performs in low-light UK conditions, its wide MPPT window and responsive tracking help maintain meaningful output under diffuse light or partial shading, common on multi-aspect British roofs.

Specification data verified from Fox ESS H3 Series Datasheet BE-V1.3 (2023/06/07).

Considering system size? See the larger H3 8 kW or step up to the H3 10 kW, and pair with high-quality solar panels and battery storage from Evergy.

Seamless Integration with Solar Panels & Battery Storage

The H3-6.0-E integrates cleanly with premium solar panels and Fox high-voltage LFP batteries (180 – 600 V). A typical UK home might begin around 10 – 13 kWh and scale storage upwards as demand grows, with direct DC coupling helping reduce conversion losses and charge time.

Smart Monitoring & Connectivity

FoxCloud provides real-time visibility via built-in Wi-Fi and LAN, with optional 4 G modules for remote sites. Interfaces include RS485, CAN, DRM, ripple control and USB for straightforward integration with meters, battery BMS and smart-home controls.

Compact Design & Dimensions

High power density in a practical footprint: 449 × 519 × 198 mm, approx. 28 kg. The IP65 aluminium housing and <45 dB cooling enable reliable outdoor or plant-room installation. Access-friendly terminals support neat, safe routing on sound wall structures.

Installer Guidance & System Notes

String design & MPPT layout

Use the 160 – 950 V MPPT window and balance current limits (up to 16 A per tracker). On mixed orientations, dedicate one MPPT per roof aspect to maximise yield.

Battery configuration & sizing

Start around 10 – 13 kWh for most UK homes; expand modularly as usage grows. High-voltage LFP architecture enables scalable capacity without changing the inverter.

Grid compliance & safety

Fully compliant with G99 and certified to EN 62109-1 & -2. Residual-current, insulation monitoring and Type II surge protection support safe commissioning and operation.

Why We Recommend the Fox ESS H3-6.0-E

Evergy recommends the H3-6.0-E for UK projects that need reliable three-phase output in a compact chassis, strong low-light behaviour and robust IP65 construction. Installers value its straightforward commissioning, comprehensive communications and dependable MPPT performance.

Evergy is the renewable division of LAMPS Electrical — an independent UK wholesaler with 15+ years serving professional installers nationwide.

Compare Models in the Fox H3 Range

Model	Max PV (W)	Rated AC (W)	MPPTs	MPPT Window (V)	Max Eff.	Dimensions (mm)	Weight (kg)
H3-5.0-E	7,500	5,000	2	160 – 950	98.5 %	449×519×198	28
H3-8.0-E	10,400	8,000	2	160 – 950	98.5 %	449×519×198	28

FAQs – Fox ESS H3-6.0-E 6 kW Three-Phase Hybrid Solar Inverter

How does the H3-6.0-E differ from the H3-8.0-E?

The H3-6.0-E provides 6,000 W AC output (vs 8,000 W) and a 9,000 W max PV input, offering a balanced option for larger homes without stepping up to the 8 kW model.

Is it compatible with Fox ESS batteries?

Yes — it supports Fox high-voltage LFP batteries, enabling scalable storage to suit your usage profile.

Can it be mounted outdoors?

Yes. The IP65 enclosure and <45 dB cooling make it suitable for outdoor walls or plant-rooms in British weather.

How is the system monitored?

Via FoxCloud, using built-in Wi-Fi/LAN or optional 4 G for remote sites.

What are the size and weight?

The unit measures 449 × 519 × 198 mm and weighs around 28 kg.

For expert guidance on compatibility or three-phase system design, contact Evergy — trusted UK distributor of Fox ESS and leading solar brands.

Attribute name	Attribute value
Features	Plug & Play installation, True 3-phase backup power, remote monitoring
Warranty	Not specified, typically 5 to 10 years
Rated Power	6,000 W
Efficiency	97.3%

H3-6.0-E

FOX ESS

Fox ESS is a global leader in the development of inverter and energy storage solutions. Engineered by some of the world’s leading inverter and battery experts, their products offer advanced features, coupled with exceptional performance and reliability.
