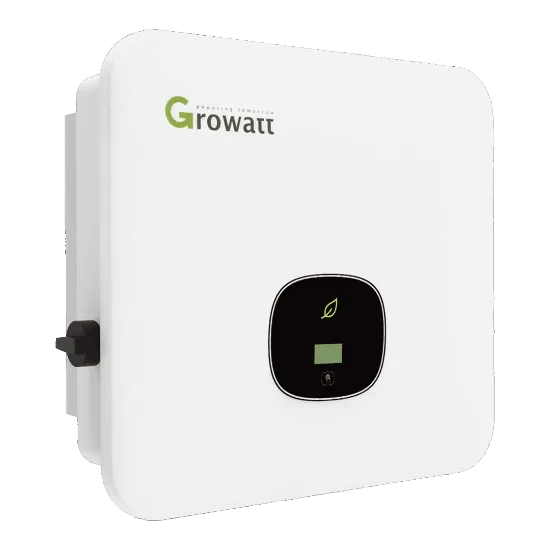

Growatt MOD 5000 TL3-XH – 5kW Three-Phase Hybrid Inverter

The Growatt MOD 5000 TL3-XH is a premium 5kW three-phase hybrid inverter engineered for efficient, battery-ready solar PV systems in the UK. Compact yet powerful, it forms part of Growatt’s acclaimed MOD TL3-XH series — designed for long-term reliability, quiet operation, and seamless compatibility with high-voltage LFP battery storage. Ideal for domestic and light-commercial installations, it ensures dependable energy conversion under typical British light conditions.

High-Efficiency Performance for British PV Systems

Featuring dual MPPT trackers with a wide 140–1000V input range, the MOD 5000 TL3-XH maximises output from arrays with mixed roof angles or partial shading. With a peak efficiency of 98.3% and rapid 99% MPPT tracking response, it converts more of your solar generation into usable energy. The inverter’s smart hybrid architecture enables simultaneous solar generation and battery management, ensuring maximum utilisation across every kilowatt-hour produced.

This level of performance makes it one of the most efficient inverters in its class, helping to improve yield consistency even through overcast or low-irradiance conditions — a common challenge across the UK.

Built for Reliability & Protection

The Growatt MOD 5000 TL3-XH is built with longevity and safety at its core. The robust IP66-rated aluminium casing offers complete protection against rain and dust, making it suitable for both indoor and outdoor environments. A fanless thermal design keeps operating noise below 25dB, ensuring silent performance in residential areas.

On the protection side, Growatt includes Type II surge protection, residual-current monitoring, and insulation resistance detection as standard. It meets all EN 62109 safety standards and is fully compliant with G99 grid connection requirements, giving installers and system designers full confidence in deployment across UK networks.

Key Features

• 5kW three-phase hybrid inverter with dual MPPT inputs
• Up to 98.3% peak efficiency and 99% MPPT accuracy
• Wide 140–1000V DC input range for flexible string design
• IP66-rated weatherproof casing with fan-free, silent operation
• Integrated surge, residual-current, and insulation protection
• Compatible with Growatt HV LFP battery modules
• Wi-Fi/LAN monitoring via Growatt Smart Energy Manager and ShinePhone app

If you’re wondering how efficient the MOD 5000 TL3-XH remains in the UK’s variable climate, its wide MPPT voltage window and low start-up threshold maintain continuous operation even under low sunlight, ensuring reliable yield all year round.

Specification data verified from Growatt MOD 3

Seamless Integration with Solar Panels & Battery Storage

The Growatt MOD 5000 TL3-XH integrates effortlessly with solar panels and battery storage systems to create a flexible, future-proof PV solution. Using Growatt’s high-voltage LFP architecture, it supports direct DC coupling for maximum conversion efficiency and rapid charge/discharge response. Up to seven battery modules can be connected in series, offering scalable storage for larger homes or small businesses looking to offset grid dependence.

Whether used in new builds or retrofit applications, its hybrid design allows immediate use as a grid-tied inverter with the option to add batteries later — saving cost and simplifying system design.

Smart Monitoring & Installer-Grade Connectivity

Connectivity comes as standard. The MOD 5000 TL3-XH includes built-in Wi-Fi and LAN interfaces, with optional 4G modules for remote locations. Through the Growatt ShinePhone app and Smart Energy Manager portal, owners and installers can track live generation, self-consumption and grid export from any device. Comprehensive data logging ensures accurate performance records for O&M teams.

Communication ports include RS485, CAN, USB and DRM interfaces for seamless BMS and meter integration — a key advantage for professional installers working with complex multi-component systems.

Compact Design & Rugged Construction

With a footprint of 425×387×178 mm and a weight of around 18 kg, the Growatt MOD 5000 TL3-XH is compact enough for wall mounting in utility rooms or outdoor spaces. Its die-cast aluminium enclosure and IP66 rating protect internal components from moisture and dust, while passive cooling maintains quiet performance below 25 dB — ideal for residential settings.

Installer Guidance & System Notes

Why We Recommend the Growatt MOD 5000 TL3-XH

At Evergy, we recommend the MOD 5000 TL3-XH for its blend of hybrid flexibility, robust engineering and installer-friendly design. It’s part of Growatt’s proven MOD series — renowned for efficiency and dependability in real British weather. The combination of IP66 durability, 98.3% efficiency and comprehensive monitoring makes it a standout choice for professional solar installers and property owners alike.

Evergy is the renewable division of LAMPS Electrical — an independent UK wholesaler with over 15 years of experience supporting solar and EV projects nationwide. Our team in Oxfordshire provides expert technical advice and genuine stock from leading brands including Growatt, Fox ESS and SolaX.

Compare Models in the Growatt MOD TL3-XH Range

FAQs – Growatt MOD 5000 TL3-XH

For expert guidance on compatibility, string design or hybrid system planning, contact Evergy — your trusted UK distributor of Growatt and leading solar brands.

000–10000 TL3-XH datasheet (Version 1.2).
