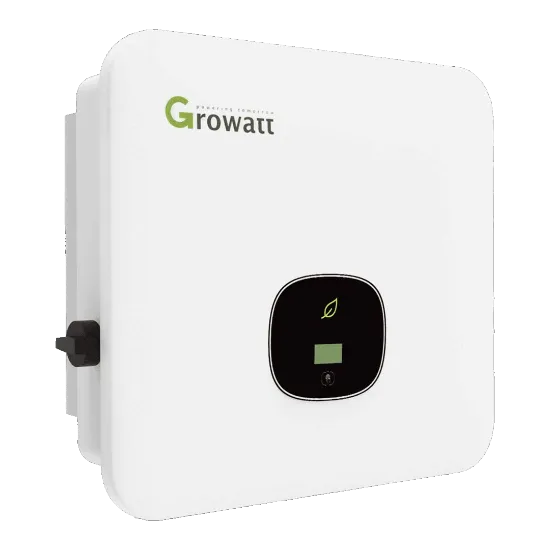

Growatt MOD 10000 TL3-XH – 10kW Three-Phase Hybrid Inverter

The Growatt MOD 10000 TL3-XH is a premium-grade 10kW three-phase hybrid inverter designed for large-scale residential and light-commercial PV systems in the UK. Delivering exceptional conversion efficiency, robust weather protection and battery-ready flexibility, it represents the top of Growatt’s advanced MOD TL3-XH series. Ideal for larger arrays and higher on-site demand, it provides installers with a reliable foundation for future-ready energy systems.

High-Efficiency Performance for British PV Systems

Featuring dual MPPT trackers with a wide 140–1000V operating range, the MOD 10000 TL3-XH ensures optimal yield even across complex multi-aspect arrays. With 98.4% maximum conversion efficiency and 99% MPPT tracking accuracy, it extracts every possible watt from your panels — maintaining high performance in the UK’s variable light conditions. Its hybrid architecture enables simultaneous PV generation and battery management, providing excellent self-consumption potential when paired with compatible high-voltage LFP batteries.

The inverter’s robust three-phase output ensures balanced load distribution, stable voltage across all phases and smooth integration with grid-tied or hybrid systems in both domestic and small business settings.

Built for Reliability & Protection

The Growatt MOD 10000 TL3-XH combines performance with durability. The IP66-rated aluminium casing protects against rain, dust and moisture — ideal for the British climate — while its fanless thermal design keeps operation whisper-quiet below 25dB. Built-in Type II surge protection (DC side), residual-current monitoring and insulation resistance detection ensure long-term electrical safety.

Fully certified to EN 62109 and compliant with G99 standards, it meets every UK grid connection requirement, simplifying approval and installation for professional installers.

Key Features

• 10kW three-phase hybrid inverter with dual MPPT inputs
• Peak efficiency of 98.4% and 99% MPPT tracking accuracy
• Wide 140–1000V DC input range for flexible system design
• Fan-free IP66 housing for silent, low-maintenance operation
• Integrated surge, residual-current and insulation protection
• Compatible with Growatt high-voltage LFP battery systems
• Wi-Fi/LAN connectivity via ShinePhone and Smart Energy Manager

If you’re wondering how the MOD 10000 TL3-XH performs under the UK’s cloudy and low-irradiance conditions, its fast-reacting dual MPPTs and wide voltage window maintain stable generation throughout the day — ensuring every panel contributes efficiently.

Specification data verified from Growatt MOD 3000–10000 TL3-XH datasheet (Version 1.2).

Seamless Integration with Solar Panels & Battery Storage

The Growatt MOD 10000 TL3-XH integrates effortlessly with solar panels and battery storage systems to create a complete high-capacity hybrid setup. Designed around Growatt’s high-voltage LFP platform, it supports direct DC coupling for superior efficiency and lower energy losses during charge and discharge cycles. With up to seven compatible battery modules in series, the system can scale to approximately 28kWh of usable storage — ideal for large households, commercial offices or multi-unit properties.

This flexibility allows property owners to start with a grid-tied system and expand to full hybrid operation later, helping reduce grid reliance and maximise long-term return on investment.

Smart Monitoring & Communication

Every Growatt MOD 10000 TL3-XH includes built-in Wi-Fi and LAN connectivity as standard, with optional 4G modules available for off-site monitoring. The Growatt ShinePhone app and Smart Energy Manager dashboard deliver real-time data on energy generation, storage performance and consumption trends — essential tools for installers and owners alike.

Data can be accessed locally or remotely, while the range of communication interfaces — RS485, CAN, USB and DRM — ensures reliable integration with external meters, BMS systems and building energy controls.

Compact Design & Rugged Construction

Despite its 10kW output, the Growatt MOD 10000 TL3-XH retains a compact footprint at 480×448×180mm and a total weight of around 20kg. Its anodised aluminium chassis and IP66 sealing offer robust protection against water and dust, while fanless thermal management keeps operation whisper-quiet below 25dB. The clean, minimalist design allows easy mounting indoors or outdoors, making it ideal for garages, plant rooms, or shaded exterior walls.

Installer Guidance & System Notes

Why We Recommend the Growatt MOD 10000 TL3-XH

At Evergy, we recommend the MOD 10000 TL3-XH for large homes, offices or commercial premises needing high-capacity hybrid energy control. It combines proven Growatt reliability with exceptional conversion efficiency, durable IP66 construction and flexible communication — all key factors for professional installations. Its hybrid-ready design ensures smooth integration with battery storage, making it ideal for future system expansion.

Evergy is the renewable division of LAMPS Electrical — an independent UK wholesaler with over 15 years of experience supporting solar and EV specialists nationwide. Our Oxfordshire-based renewables team provides genuine Growatt products, verified datasheets and expert technical advice for every system size.

Compare Models in the Growatt MOD TL3-XH Range

FAQs – Growatt MOD 10000 TL3-XH

For professional advice on specification, compatibility or trade pricing, contact Evergy — trusted UK distributor of Growatt hybrid inverters and renewable energy solutions.
