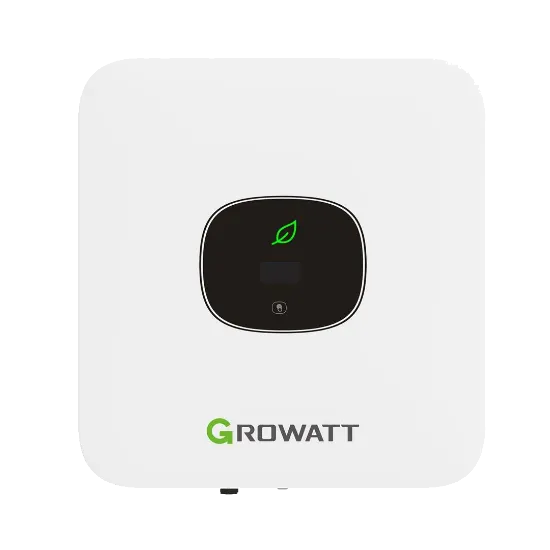

Growatt MIC 2500 TL-X-DC – 2.5kW Single-Phase Solar Inverter

£268.06

The Growatt MIC 2500 TL-X-DC is a compact, single-phase solar inverter for UK homes delivering up to 2.5kW AC output with a maximum efficiency of 97.8%. Its single MPPT tracker and broad DC input window are ideal for modest arrays, split aspects and variable conditions typical of British rooftops, helping you capture more energy across changing light levels.

Built to last, the fanless IP65 enclosure supports quiet outdoor or plant-room installation, while the intuitive OLED touch-key display keeps commissioning simple. Connectivity is flexible via optional Wi-Fi/LAN for Growatt Cloud monitoring, plus RS485 and USB for local data and third-party integration. Safety features include DC reverse-polarity, insulation and residual-current monitoring, and surge protection, with compliance to EN 62109 and UK grid standards (G98/G99) for straightforward approval.

Pair with quality solar panels and explore storage options via battery systems if you plan to add flexibility later.

Contact Evergy for product guidance or system compatibility support.

SKU: MIC2500-TL-X-DC

Qty:

Free and easy returns | Easy to Install | Professional Installers Available

The Growatt MIC 2500 TL-X-DC is a high-efficiency single-phase inverter designed for modern UK homes and small commercial systems. Delivering up to 2.5kW of clean AC output, it combines advanced MPPT technology with durable IP65 protection, making it one of the most versatile grid-tied inverters in Growatt’s MIC TL-X series.

High-Efficiency Performance for British PV Systems

With a peak conversion efficiency of 97.8%, the MIC 2500 TL-X-DC optimises energy harvest even on cloudy or low-irradiance days. Its single MPPT tracker operates across a wide 70–550V voltage range, allowing flexible string design for smaller residential installations. The inverter’s advanced tracking algorithm maintains high output accuracy, ensuring steady generation from multi-aspect rooftops throughout the year.

Built for Reliability & Protection

Growatt’s design focuses on longevity and safety. The IP65-rated aluminium casing resists dust, moisture, and weather exposure, while passive cooling (<30dB) keeps it silent and low-maintenance. Integrated residual-current monitoring, surge protection, and DC reverse-polarity defence safeguard the system. Optional AFCI detection adds an extra layer of fire safety. Fully certified to EN 62109 and compliant with G98/G99 grid regulations, the MIC 2500 TL-X-DC meets all UK installation requirements.

Key Features

Single MPPT input with 99.5% tracking precision
Up to 97.8% peak efficiency for maximum yield
Fanless IP65 construction for silent operation
Wi-Fi, LAN, or RS485 connectivity with Growatt Cloud
Compact 6kg design for fast, single-person installation
Comprehensive electrical protection suite

If you’re wondering how the MIC 2500 TL-X-DC performs in variable weather, its wide voltage tolerance and responsive MPPT tracking keep it generating efficiently even during low-light mornings or overcast British days.

Specification data verified from Growatt MIC TL-X Inverter datasheet (V04.2024).

Smart Monitoring & Connectivity

The Growatt MIC 2500 TL-X-DC makes system management straightforward with integrated communication and monitoring features. Through optional Wi-Fi or LAN modules, homeowners can connect to Growatt Cloud for real-time data, performance tracking, and firmware updates. Local monitoring is available via RS485 and USB, giving installers and users flexibility across different site types and network setups.

Seamless Integration with Solar Panels

Designed for compatibility across a wide voltage range, the MIC 2500 TL-X-DC pairs seamlessly with a variety of solar panels. Its single MPPT configuration simplifies wiring, making it a practical choice for small-scale arrays or dual-aspect roof designs. Combined with its IP65 weatherproof rating, this inverter supports dependable operation across British conditions — from summer heat to damp winters.

Compact Design & Durable Build

At just 274×254×138mm and weighing around 6kg, the MIC 2500 TL-X-DC is compact, lightweight and easy to mount on most wall surfaces. Its passive cooling design eliminates moving parts, reducing maintenance while maintaining noise levels below 30dB. The high-grade aluminium housing ensures protection against dust and rain, offering reliability for years of service life.

Installer Guidance & System Notes

String design & MPPT layout

Use the 70–550V operating window and keep string voltage comfortably above the start-up threshold for consistent energy yield. The single MPPT should be used with balanced panel strings on the same orientation.

Battery configuration & sizing

This inverter is a grid-tied model only. For solar storage, combine it with a compatible battery inverter or Growatt hybrid unit for a complete energy system.

Grid compliance & safety

Certified for EN 62109 and G98/G99 standards, the MIC 2500 TL-X-DC includes residual-current and surge protection as standard, ensuring safe UK grid integration.

Why We Recommend the Growatt MIC 2500 TL-X-DC

At Evergy, we recommend the MIC 2500 TL-X-DC for homeowners or installers seeking a compact, dependable, and efficient inverter for small-scale solar systems. Its excellent 97.8% efficiency and weatherproof IP65 enclosure make it ideal for residential and light-commercial applications.

Evergy is the renewable division of LAMPS Electrical — a long-established independent wholesaler supporting UK electricians and installers. Our Oxfordshire-based renewables team provides expert advice, genuine Growatt components, and fast nationwide supply.

Choose the MIC 2500 TL-X-DC for robust design, simple installation, and proven Growatt reliability in British conditions.

Compare in the Growatt MIC TL-X Range

Model	Max PV (W)	Rated AC (W)	MPPTs	MPPT Window (V)	Max Eff.	Dimensions (mm)	Weight (kg)
MIC 1000 TL-X-DC	1300	1000	1	50–500	97.6%	274×254×138	6
MIC 3000 TL-X-DC	3900	3000	1	70–550	97.8%	274×254×138	6

FAQs – Growatt MIC 2500 TL-X-DC

How does the MIC 2500 TL-X-DC differ from the MIC 1000 TL-X-DC?

The MIC 2500 TL-X-DC offers a higher 2.5kW AC output and larger PV input range, making it more suitable for medium-sized rooftop systems.

Is the MIC 2500 TL-X-DC battery-ready?

No — it is a standard grid-tied inverter. For storage compatibility, consider Growatt’s hybrid series or an AC-coupled battery inverter.

Can it be mounted outdoors?

Yes, its IP65 casing allows outdoor or semi-covered installation in British weather conditions.

How can I monitor performance?

Via the Growatt Cloud using Wi-Fi or LAN, or locally via RS485 or USB connection for data logging and system diagnostics.

What are its dimensions and weight?

The unit measures approximately 274×254×138mm and weighs 6kg, enabling single-person wall mounting.

For system design advice or compatibility queries, contact Evergy — your trusted UK supplier of Growatt inverters and renewable energy equipment.

Growatt MIC TL-X Inverter Datasheet
