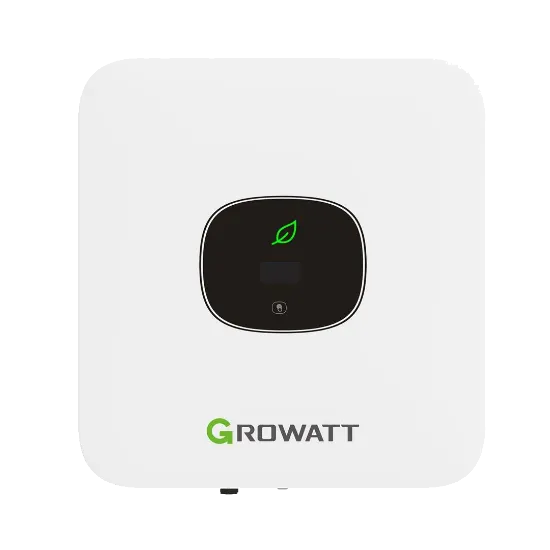

Growatt MIC 1000 TL-X-DC – 1kW Single Phase Inverter

The Growatt MIC 1000 TL-X-DC is a high-efficiency, single-phase solar inverter designed to deliver reliable performance for smaller UK photovoltaic systems. Compact yet powerful, it converts up to 1kW of DC energy from solar panels into clean AC power for homes or light-commercial installations. With its modern design, quiet operation and installer-friendly layout, it’s one of the most efficient entry-level inverters in Growatt’s MIC TL-X range.

High-Efficiency Performance for British PV Systems

Engineered for maximum yield, the MIC 1000 TL-X-DC achieves up to 97.6% conversion efficiency and uses a single MPPT tracker to optimise production from compact or partly shaded rooftop systems. Its wide 50–500V DC operating window ensures dependable performance through variable weather and low-irradiance conditions typical of UK homes. The inverter’s natural convection design keeps operation below 30dB, making it perfectly suited to both indoor and outdoor use.

Built for Reliability & Protection

This inverter features an IP65-rated aluminium housing for weather-resistant installation in garages, utility rooms, or external walls. Electrical protection includes DC reverse-polarity, residual-current monitoring, and Type III surge protection on both DC and AC sides. Optional AFCI functionality provides extra fire safety, while EN 62109 and G98 certification guarantee full UK grid compliance. Its fan-free cooling design also enhances long-term reliability with minimal maintenance.

Key Features

• Single MPPT tracker with 99.5% tracking accuracy
• Up to 97.6% maximum efficiency for greater energy harvest
• Fanless IP65 casing for silent outdoor operation
• Compact and lightweight (approx. 6kg) for easy installation
• Optional Wi-Fi, LAN or GPRS communication modules
• Comprehensive protection including RCMU and SPD

If you’re wondering how the MIC 1000 TL-X-DC performs on cloudy or low-light days, its precise MPPT algorithm keeps the inverter operating efficiently even during early mornings or overcast conditions — ideal for the UK’s variable climate.

Specification data verified from Growatt MIC TL-X Inverter datasheet (V04.2024).

Smart Monitoring & Connectivity

The Growatt MIC 1000 TL-X-DC gives homeowners and installers full control over system performance through integrated communication options. It supports Wi-Fi and LAN modules for Growatt Cloud monitoring, allowing real-time data tracking, fault analysis and remote configuration. Communication ports include RS485 and USB, ensuring compatibility with third-party monitoring devices and smart energy management systems.

Seamless Integration with Solar Panels

This inverter is designed to integrate efficiently with solar panels across a range of configurations. Its broad 50–500V DC input range allows flexibility in string design for small residential rooftops or compact commercial systems. The inverter’s 1kW output makes it a perfect choice for small-scale arrays or self-consumption setups where reliability and simplicity are essential.

Compact Design & Rugged Construction

The MIC 1000 TL-X-DC offers a slim and lightweight form factor measuring approximately 274×254×138mm and weighing just 6kg. Its IP65 aluminium housing protects against dust, humidity, and rain, while the natural convection system keeps it running quietly without fans. The minimal profile enables straightforward wall mounting, making it ideal for installations where space and aesthetics matter.

Installer Guidance & System Notes

Why We Recommend the Growatt MIC 1000 TL-X-DC

At Evergy, we recommend the MIC 1000 TL-X-DC for its combination of efficiency, reliability and straightforward installation. Its quiet, fanless operation and durable IP65 build make it ideal for compact systems, while its precision MPPT control ensures dependable output even on overcast days.

Evergy is the renewable division of LAMPS Electrical — an independent UK wholesaler with over 15 years of experience supporting professional installers nationwide. Our Oxfordshire-based renewables team provides genuine product sourcing and expert technical assistance.

Choose the MIC 1000 TL-X-DC for proven Growatt engineering, high efficiency, and reliable long-term performance for small-scale British PV systems.

Compare in the Growatt MIC TL-X Range

FAQs – Growatt MIC 1000 TL-X-DC

For expert guidance on product compatibility, inverter selection or system design, contact Evergy — your trusted UK distributor for Growatt and leading solar brands.
