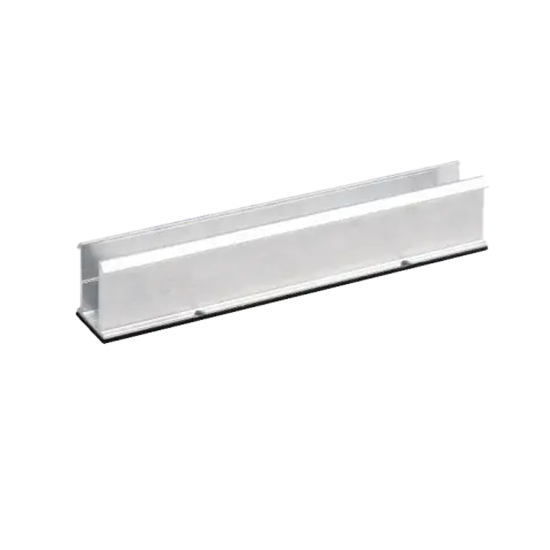

Esdec ClickFit Evo Mounting Profile for Metal Roof - Portrait: Secure Portrait Panel Mounting

Install your solar panels in the standard portrait orientation efficiently and securely on compatible metal roofs with the Esdec ClickFit Evo Mounting Profile for Portrait. This specialised profile creates the necessary interface between Esdec's metal roof fixings (e.g., hanger bolts, potentially used with adapter plates, or specific brackets) and the panels themselves. Choosing the right components ensures a robust, long-lasting installation, maximising your solar energy harvest and helping you manage energy costs effectively.

Optimised for Portrait Orientation on Metal Roofs

Designed as an alternative or companion to standard rails for specific metal roof applications, this profile facilitates portrait mounting:

• Direct Panel Support: Runs parallel to the roof fixings, providing secure support along the shorter sides of the panels when mounted portrait.
• Integrated Clamping Channel: Features the necessary grooves to accept standard ClickFit Evo module clamps for fastening the panels directly to the profile.
• Metal Roof Focus: Tailored for use with Esdec's solutions for trapezoidal or potentially other profiled metal roofs, ensuring correct clearances and fixing methods. Contrast with the Landscape Profile for alternative orientation.

Streamlined Installation Process

Utilising this dedicated profile can simplify the installation workflow for portrait layouts on metal roofs compared to potentially more complex standard rail setups in some scenarios. It leverages the ClickFit Evo principles for attaching clamps where applicable, maintaining efficiency once the profiles are securely fixed to the roof structure.

Robust Esdec Construction

Manufactured from high-strength, corrosion-resistant aluminium, this profile meets Esdec's stringent quality standards. It provides a durable, lightweight, yet strong backbone for the solar array, designed to withstand environmental stresses and covered by the comprehensive Esdec system warranty when installed according to guidelines.

Why Evergy Recommend This Product

For portrait panel orientations on compatible metal roofs using the ClickFit Evo system, this profile offers a dedicated solution. We recommend it because:

• Purpose-Designed: Optimised specifically for portrait mounting on metal roofs within the ClickFit Evo framework.
• Efficient Installation: Can potentially streamline the setup for portrait layouts in certain metal roof scenarios.
• System Compatibility: Fully integrates with ClickFit Evo clamps and appropriate metal roof fixings.
• Esdec Quality: Ensures a reliable, engineered structure meeting manufacturer standards.

Key Technical Details

• Component: Mounting Profile
• Application: Metal Roofs
• Orientation: Portrait
• System: Esdec ClickFit Evo
• Material: High-Grade Aluminium

Consult Esdec documentation and the Enstall Calculator output for compatible roof types, required fixings, and available profile lengths.

Plan Your Metal Roof Portrait Array

Ensure structural integrity and efficient installation by selecting the correct components. Utilise the Enstall Calculator for Esdec, providing accurate details about your metal roof and panel choice. It will generate a Bill of Materials specifying whether this Portrait Mounting Profile, standard rails, or other components are required. Add the specified items to your basket along with the necessary fixings and clamps from the Esdec range.
