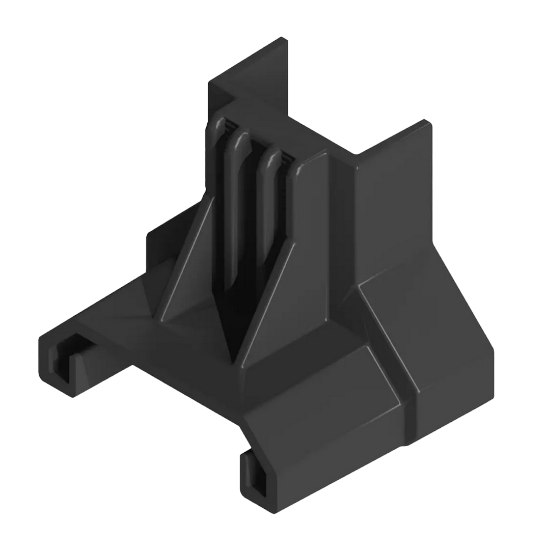

Esdec ClickFit Evo End Clamp Support Black: Enabling Secure End Clamping on Specific Profiles

Ensure your Esdec ClickFit Evo end clamps function perfectly, even on specialised profiles like those used for trapezoidal metal roofs (e.g., the Portrait or Landscape metal roof profiles), with this essential Black End Clamp Support. This component acts as an adapter or supportive base, allowing the end clamp to sit correctly and apply the necessary clamping force to the edge solar panel. Correct clamping is vital for the security of the entire array, contributing to a safe, long-lasting system that helps you manage energy costs.

Bridging the Gap for End Clamps

On certain mounting profiles, the shape might not provide a suitable flat or stable surface directly beneath where an end clamp needs to sit. This support piece resolves that:

• Provides Stable Base: Creates a solid platform for the end clamp to rest on, ensuring even pressure distribution.
• Correct Alignment: Helps position the end clamp at the correct height and angle relative to the panel frame and profile.
• Prevents Tilting/Movement: Stops the end clamp from potentially tilting or shifting on an uneven profile surface.
• Aesthetic Integration: The black colour matches corresponding black end clamps (like the Universal Clamp when used as an end clamp) and profiles. Also available in Grey.

Essential for Specific ClickFit Evo Configurations

The requirement for this End Clamp Support is dictated by the specific combination of ClickFit Evo mounting profile and end clamp being used. It's commonly associated with trapezoidal metal roof profiles where the profile shape necessitates this adapter. Always refer to the Esdec assembly instructions or the Enstall Calculator output for confirmation.

Durable Esdec Component

Made from robust materials designed by Esdec for outdoor use, this support piece is built to last the lifetime of the installation. It integrates seamlessly into the ClickFit Evo system and ensures the end clamping mechanism performs as intended, maintaining the system's overall integrity and warranty coverage.

Why Evergy Recommend This Product

When installing ClickFit Evo end clamps on compatible metal roof profiles that require it, this Support piece is essential. We recommend it because:

• Enables Correct Clamping: Allows end clamps to function properly on specific profile shapes.
• Ensures Security: Provides a stable base, preventing clamp movement or improper seating.
• System Compliance: It's the Esdec-approved method for adapting end clamps in these scenarios.
• Professional Finish: Contributes to a neat and correctly assembled installation.

Key Technical Details

• Component: End Clamp Support
• Function: Provides stable base/adapter for end clamps on specific profiles
• System: Esdec ClickFit Evo (esp. Metal Roof Profiles)
• Colour: Black
• Material: Durable Plastic/Composite or Metal (Check datasheet)

Verify compatibility with your specific ClickFit Evo profile and end clamp model.

Confirm if End Clamp Supports Are Required

Avoid installation issues by checking requirements beforehand. Consult the Esdec installation manual for your chosen metal roof profile or use the Enstall Calculator to generate a specific Bill of Materials. If End Clamp Supports are listed, add the required quantity (typically one per end clamp used) to your basket along with your profiles, clamps, fixings, and other Esdec components.
