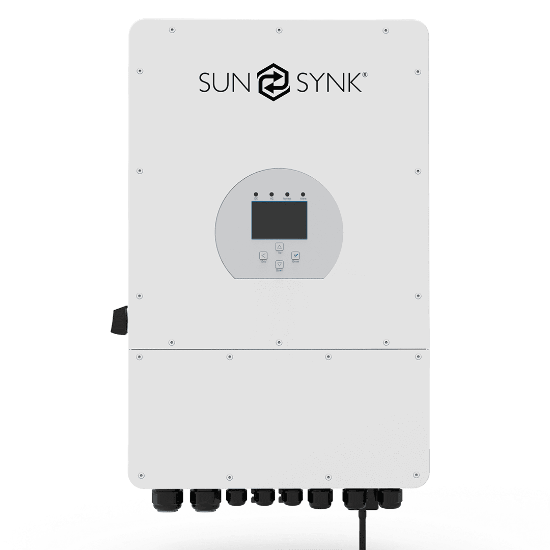

Sunsynk 12K-SG04LP3 12kW 3-Phase Hybrid Solar Inverter

£2639.00

Elevate your energy management with the Sunsynk 12K-SG04LP3, a high-capacity 12kW three-phase hybrid solar inverter ideal for demanding UK residential or commercial applications. Integrate solar panels, grid power, and battery storage seamlessly for maximum efficiency.

High Power Output: Delivers 12kW rated power, perfect for properties with substantial energy needs.
Flexible Energy Sources: Manages input from solar, grid, batteries, and generators effectively.
Advanced Monitoring: Includes Wi-Fi for easy system tracking via the Sunsynk app.

Why We Recommend This Product: This is Sunsynk's powerhouse three-phase hybrid, ideal for larger homes or commercial sites requiring significant power handling and battery integration.

SKU: SYNK-12K-SG04LP3

Free and easy returns | Easy to Install | Professional Installers Available

Pallet Delivery *

Sunsynk 12K-SG04LP3: The High-Capacity 12kW Hybrid Solar Inverter for Larger UK Properties

For larger homes or commercial premises demanding substantial power management capabilities, the Sunsynk 12K-SG04LP3 12kW three-phase hybrid inverter is the ultimate solution. This powerful PV inverter expertly integrates energy from solar panels, the grid, battery energy storage, and generators, ensuring optimal energy utilisation and providing pathways to lower energy costs and greater grid independence.

Master Your Energy Flow & Costs

Take full advantage of your solar generation by storing surplus energy in compatible 48V Li-ion or lead-acid batteries. The SYNK-12K-SG04LP3 enables you to use this stored power during peak demand periods or when grid prices are high, helping to combat rising energy tariffs. Its configurable operating modes allow you to prioritise energy sources, maximising self-consumption and providing reliable backup power during outages.

Exceptional Power for Demanding Applications

With a rated AC output of 12,000W and a peak AC power capability of 13,200W, this inverter is built to handle significant loads. It supports an extensive solar array with a maximum DC input power of 15,600W. According to the manufacturer's datasheet, its dual MPPT design ensures efficient energy harvesting across different panel strings or orientations, achieving a high maximum efficiency of 97.6%.

Intelligent Features & Solar Inverter Warranty

Monitor your system's performance effortlessly using the clear LCD screen and integrated RS485/Wi-Fi connectivity. The Sunsynk platform allows for remote monitoring and management. This robust unit is protected by an IP65-rated enclosure and features multiple built-in safety functions like surge protection (DC Type III / AC Type III) and residual current monitoring. Sunsynk provides a 5-year warranty for this inverter, as confirmed by the datasheet.

Scalability and Parallel Operation

Like its siblings, the SYNK-12K-SG04LP3 offers excellent scalability. Based on information from resellers, up to 16 units can be connected in parallel, making it suitable for very large domestic or commercial solar installations requiring substantial power capacity.

Why Evergy Recommend This Product

The Sunsynk 12K-SG04LP3 stands out as a top-tier choice for high-demand three-phase hybrid systems. We recommend it for:

Large residential properties with high energy consumption.
Commercial and industrial applications requiring a powerful, reliable inverter.
Systems incorporating significant battery energy storage capacity.
Users demanding advanced power management and backup capabilities.

For applications with slightly lower power needs, consider the SYNK-10K-SG04LP3 or the SYNK-8K-SG04LP3.

Key Technical Specifications

Rated AC Output Power: 12,000W
Max. DC Input Power (PV): 15,600W
MPPT Voltage Range: 200-650Vdc
Max. Charging/Discharging Current: 240A
Protection Degree: IP65

Consult the specifications tab or download the datasheet for comprehensive technical information.

Invest in Powerful, Flexible Energy Management

Choose the Sunsynk 12K-SG04LP3 for unparalleled three-phase hybrid performance. Complete your system with our selection of solar panels, compatible solar batteries, solar cabling, and mounting systems. Contact Evergy for expert advice on designing your ideal solar energy solution.

Attribute name	Attribute value
Max AC Power	12,000 W (5 Minutes)
Surge AC Power	18,000 W (1 Second)
Dimensions	485 x 420 x 200 mm
Weight	40 kg
Warranty	5 Years
Rated Power	12,000 W
Min PPT Voltage	150 V
Max PPT Voltage	550 V
Max Input Voltage	600 V
Max AC Power (5 Minutes)	12,000 W
Surge AC Power (1 Second)	18,000 W
Max DC Current	40 A
MPPT Quantity	2
DC Start-up Voltage	150 V
Protection Class	IP65 (Outdoor Use)
Max DC Power	15,000 W
Euro Efficiency	96.5%

SYNK-12K-SG04LP3

SUNSYNK

Established over 20 years ago, Sunsynk specializes in cutting-edge solar storage solutions. They offer a diverse range of inverters and battery systems for both off-grid and on-grid needs, setting benchmarks in power storage and management.
