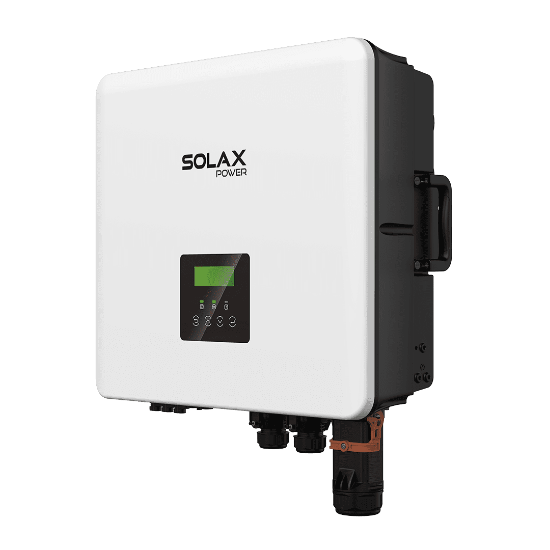

SolaX X3-Hybrid-G4 6kW 3-Phase Inverter

SolaX X3-Hybrid G4 6.0kW Three-Phase Hybrid Inverter

The SolaX X3-Hybrid G4 6.0kW is a powerful, scalable hybrid inverter designed for installations that demand performance, flexibility, and resilience. This new generation model blends robust solar conversion with intelligent battery management and near-instant emergency backup – all within a durable IP65 housing built for long-term service.

Efficient PV Integration with Dual MPPT

This inverter accepts up to 20kW of solar input, with two independent MPPT trackers for flexible array design. Each tracker handles up to 28A and 16A respectively, accommodating the latest high-current PV modules with ease. With up to 200% PV oversizing and 110% AC output capability, it pushes solar yields higher – even under partial shading or seasonal dips.

Hybrid Power, On Your Terms

The X3-Hybrid G4 supports both lithium-ion and lead-acid batteries, ranging from 180V to 800V. Its 30A continuous charge/discharge current means you can store and draw significant energy when it matters most. The system also features smart scheduling and 0.3s load response via CT input – ensuring that your solar and stored energy are prioritised intelligently.

Fast, Reliable Backup with EPS Function

When grid supply fails, the EPS mode activates in under 10 milliseconds, supplying power directly from battery and PV. The G4 can deliver up to 12kVA for 10 seconds during peak demand, and supports up to 5kW output on a single phase – perfect for high-starting appliances and mixed loads in homes or businesses.

Engineered for Intelligence & Connectivity

Through integrated support for Pocket WiFi, 4G, CT, and RS485, the inverter connects effortlessly to the SolaX Cloud. This enables remote monitoring, firmware updates, and even virtual power plant participation. Its USB quick configuration option also streamlines on-site commissioning.

Why Evergy Recommends This Product

We like to think of the 6.0kW G4 as the ‘smart entry’ into hybrid power – compact enough for tighter installs, but rich in features. It shares the same DNA as the larger 8kW, 10kW, and 15kW models, so scaling up is easy when the project grows. Whether you’re designing a small business backup system or futureproofing a smart home, the X3-Hybrid 6.0-D provides the same commercial-grade control and resilience in a more compact form.

Ideal For

This inverter is ideal for:

• High-end residential systems with battery storage and backup needs
• Small commercial projects seeking hybrid capability with limited roof space
• Sites planning to join a VPP or require advanced monitoring and load control

Technical Specifications Highlights

• Nominal Output: 6.0kW | Max output: 6.6kVA
• Battery Support: 180–800V Li-ion/Lead-acid, 30A
• MPPT Inputs: 2 (28A / 16A max input current)
• PV Power Input: 20kW max (PV1: 10.5kW, PV2: 6kW)
• Efficiency: 98.0% max, 97.5% battery round-trip
• Protection: IP65, Integrated SPD, <5W standby power
• Dimensions: 503 × 503 × 199 mm | Weight: 30 kg

Delivery & Installation Info

Ships free across mainland UK. For systems with battery backup or VPP-ready configurations, we strongly recommend working with certified hybrid installers. Get in touch for compatible battery options and custom quotes.
