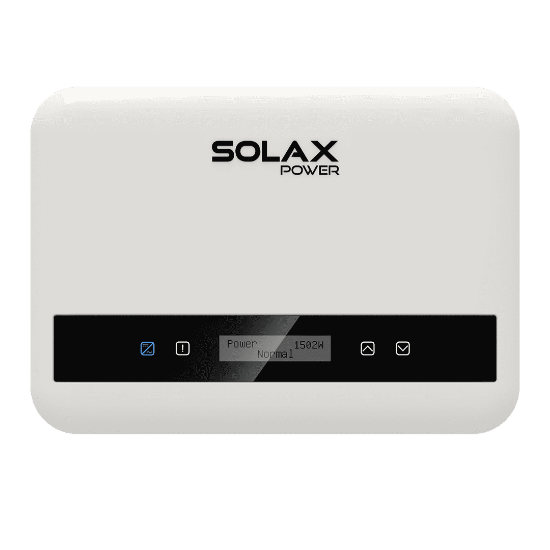

SolaX X1 Mini G4 0.7kW Single Phase String Inverter

£162.00

The SolaX X1 Mini G4 0.7kW is a compact, high-efficiency solar inverter engineered for smaller UK residential PV systems. Its low 70V start-up voltage and precise MPPT tracking ensure reliable energy generation even in overcast or shaded conditions. With a maximum efficiency of 97.1% and a 55–380V operating range, it extracts optimal performance from every panel across typical British light levels.

Encased in a durable IP65 housing, the X1 Mini G4 runs fan-free and near-silently, making it ideal for discreet outdoor or utility-room installation. Integrated safety features meet EN 62109 and G98 standards, ensuring full grid compliance. Communication is straightforward with optional Wi-Fi or LAN modules, plus RS485 and DRM interfaces for professional monitoring setups.

Pair with premium solar panels and reliable mounting systems to complete your photovoltaic installation.

Contact Evergy for product guidance or system compatibility support.

SKU: X1-MINI-0.7K-G4

Qty:

Free and easy returns | Easy to Install | Professional Installers Available

The SolaX X1 Mini G4 0.7kW Single Phase String Inverter is a refined choice for small-scale solar installations where performance and simplicity are key. Built for the latest generation of residential PV systems, it provides dependable single-phase power conversion with intelligent control and class-leading efficiency for British homes.

High-Efficiency Performance for British PV Systems

Delivering up to 97.1% peak efficiency, the X1 Mini G4 0.7kW maximises solar harvest from limited roof space. A wide 55–380V MPPT operating window and rapid tracking accuracy ensure consistent generation through low-light mornings, cloudy weather, or mixed-orientation panels common across UK housing. The low 70V start-up voltage allows generation to begin earlier each day, improving daily yield.

Built for Reliability & Protection

Encased within a robust IP65-rated shell, this inverter is purpose-built to withstand British weather. Fan-free natural cooling keeps noise below 25dB, making it perfect for external walls or internal plant rooms. Integrated surge protection, insulation monitoring, and residual-current safeguards maintain safe, long-term operation under G98 and EN 62109 compliance standards.

Key Features

High conversion efficiency up to 97.1%
Wide 55–380V MPPT range for improved low-light response
IP65 weatherproof design with quiet, fan-free cooling
Lightweight 6kg construction for quick wall mounting
Optional Wi-Fi/LAN connectivity via SolaX Cloud monitoring
Full G98 and EN 62109 compliance for UK grid use

If you’re wondering how efficient the X1 Mini G4 0.7kW remains under British skies, its low-voltage start-up and precise MPPT tracking keep energy flowing even during early-morning and overcast periods — a clear advantage for northern installations where sunlight is often variable.

Specification data verified from SolaX Power X1 Mini G4 datasheet (v1.1).

Seamless Integration with Solar Panels & Battery Systems

The SolaX X1 Mini G4 0.7kW inverter connects effortlessly with quality solar panels and battery-ready systems, giving installers and homeowners flexibility for future expansion. Its single-MPPT architecture suits compact roof layouts, garages, or small commercial arrays, offering a straightforward route to clean energy production. When paired with compatible battery storage via the SolaX ecosystem, it supports efficient DC coupling for enhanced self-consumption and reduced export loss.

Smart Monitoring & Connectivity

Monitoring is intuitive with SolaX Cloud — accessible through Wi-Fi, LAN, or optional 4G communication modules. Installers can view performance data, energy yield, and grid interaction in real time, simplifying commissioning and maintenance. Communication ports include RS485 and DRM interfaces, allowing flexible integration with meters, optimisers, or external monitoring platforms.

Compact Design & Practical Installation

Compact at 267×328×116mm and weighing just 6kg, the X1 Mini G4 offers remarkable power density in a small footprint. The IP65 aluminium enclosure provides weatherproof protection, while natural cooling keeps operation silent and maintenance minimal. Its plug-in terminal design and lightweight body make it particularly easy for installers working on small domestic projects or retrofit applications.

Installer Guidance & System Notes

String design & MPPT layout

Operate within the 55–380V MPPT window and keep current within safe limits. The single MPPT is ideal for small, uniform arrays with consistent panel orientation.

Battery configuration & sizing

The X1 Mini G4 can be integrated into the wider SolaX ecosystem for hybrid-ready applications. Typical UK homes may start with 3–6kWh of battery storage, expandable as energy needs grow.

Grid compliance & safety

Fully certified for G98 and EN 62109 operation, with built-in surge protection, RCMU, and insulation monitoring for safe and compliant installation in the UK.

Why We Recommend the SolaX X1 Mini G4 0.7kW

At Evergy, we recommend the X1 Mini G4 0.7kW for small residential solar systems seeking dependable, silent operation and proven efficiency. Its build quality, low start-up voltage, and IP65 rating make it particularly well-suited to the British climate. Combined with intuitive SolaX Cloud monitoring and simple installation, it’s an outstanding option for compact domestic systems or small offices.

Evergy is the renewable division of LAMPS Electrical, an independent UK wholesaler with over 15 years of trade experience supporting installers nationwide with reliable products, technical knowledge, and fast distribution.

Compare in the SolaX X1 Mini G4 Range

Model	Max PV (W)	Rated AC (W)	MPPTs	MPPT Window (V)	Max Eff.	Dimensions (mm)	Weight (kg)
X1 Mini G4 1.5kW	1950	1500	1	55–380	97.3%	267×328×116	6.0
X1 Mini G4 2.5kW	3250	2500	1	55–380	97.5%	267×328×116	6.0

FAQs – SolaX X1 Mini G4 0.7kW

How does the X1 Mini G4 0.7kW differ from the 1.5kW version?

The 0.7kW model is ideal for small PV systems with lower generation capacity, while the 1.5kW version offers higher output for larger domestic arrays.

Is it compatible with SolaX batteries?

Yes — it can integrate within the SolaX hybrid ecosystem and operate alongside compatible battery modules for future upgrades.

Can it be installed outdoors?

Yes, its IP65 casing ensures protection from rain and dust, making it suitable for exterior wall or garage mounting.

How is performance monitored?

Through the SolaX Cloud platform, available via Wi-Fi, LAN, or optional 4G modules, providing real-time generation and system data.

What are the dimensions and weight?

The inverter measures 267×328×116mm and weighs approximately 6kg.

For professional advice or system design assistance, contact Evergy — trusted UK distributor of SolaX, Growatt, Fox ESS and other leading solar brands.

Attribute name	Attribute value
Other Features	Low start-up voltage, inbuilt MPP scan, EV charger support
IP Rating	IP66
Rated Power	700W
Max Input Voltage	450V
MPPT Quantity	1
DC Start-up Voltage	50V
Efficiency	98%

X1-MINI-0.7K-G4

SOLAX

Established in 2012, SolaX is an internationally renowned provider of photovoltaic energy storage systems. They offer energy storage inverters, batteries, and grid-connected solutions to customers worldwide. SolaX ranks among the top three globally in market share for household photovoltaic energy storage systems.

Free delivery -

NEXT DAY Delivery to Oxfordshire, Buckinghamshire and London via an EVERGY vehicle. Max of 1 ton weight.

Other delivery options via courier -

FREE NEXT DAY (*orders over £50, some batteries and inverters will require an additional fee) via FEDEX. Monday to Friday, up to 30kg, Max box size 50cm x 50cm x 50cm (volume). Orders must be received by 2pm.

Anytime NEXT DAY delivery – under £50 = £6.50 (depending on location, weight and size)

Regardless of spend, additional to any of the above charges –

Before noon (FedEx Priority Express) = Guide Price £15.00 (calulated at checkout)

Before 10am (FedEx First) = Guide Price £20.00 (calulated at checkout)

Delivery of pallets -

Palletised deliveries – Prices starting at £58

Multiple pallet orders can be quoted upon request (price dependent on number of pallets and postcode area)

Special delivery items may vary (non-stock products).

SAME DAY COLLECTION - Click & collect from Evergy Stores (Thame, Oxfordshire).

Products

Related products

SolaX X1 Mini G4 1.5kW Single Phase String Inverter

The SolaX X1 Mini G4 1.5kW is a compact, high-efficiency single-phase string inverter for small UK residential PV systems and light-commercial sites. With a low 70V start-up and a wide 55–380V MPPT window, it maintains strong yield through typical British low-light conditions and mixed orientations. Peak conversion efficiency up to 97.3% helps maximise generation where roof space is limited.

A robust IP65 enclosure and fan-free cooling ensure quiet, reliable operation for external walls, garages, or utility rooms. Safety and compliance are built in, meeting EN 62109 and UK G98 requirements. Connectivity is straightforward via optional Wi-Fi or LAN for SolaX Cloud monitoring, with RS485 and DRM interfaces supporting professional metering and control.

Complete your system with quality solar panels and proven mounting hardware from Evergy for a dependable photovoltaic installation.

Contact Evergy for product guidance or system compatibility support.

£183.60

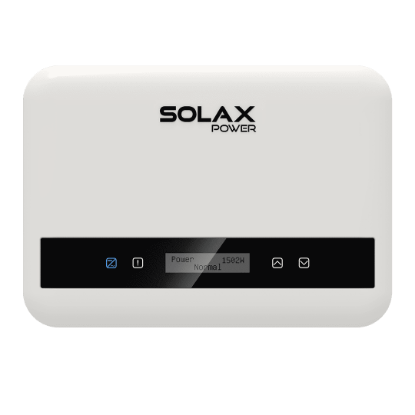

SolaX X1 Mini G4 2.5kW Single Phase String Inverter

The SolaX X1 Mini G4 2.5kW string inverter is designed for UK residential and light-commercial PV systems requiring higher output without compromise on efficiency or flexibility. With a wide 55–380V MPPT window and a low start-up voltage of 70V, it maximises generation even under typical British overcast conditions. Peak efficiency reaches 97.5%, supporting best-in-class performance for homes with larger rooftop arrays.

Featuring a weatherproof IP65 enclosure and silent, fan-free operation (<25dB), the X1 Mini G4 2.5kW is suitable for outdoor wall or internal plant-room installation. It meets EN 62109 and UK grid standard G98, giving installers and homeowners assurance of compliance and long-term reliability. Built-in monitoring connectivity via Wi-Fi/LAN and RS485/DRM ensures simple integration into control systems.

Combine with quality solar panels and robust mounting solutions from Evergy to build a strong photovoltaic system foundation.

Contact Evergy for product guidance or system compatibility support.

£271.30

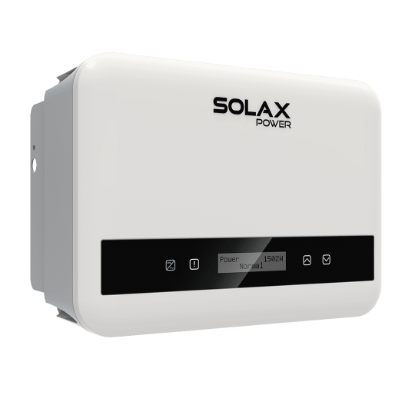

SolaX X1 Mini G4 3.3kW Single Phase String Inverter
