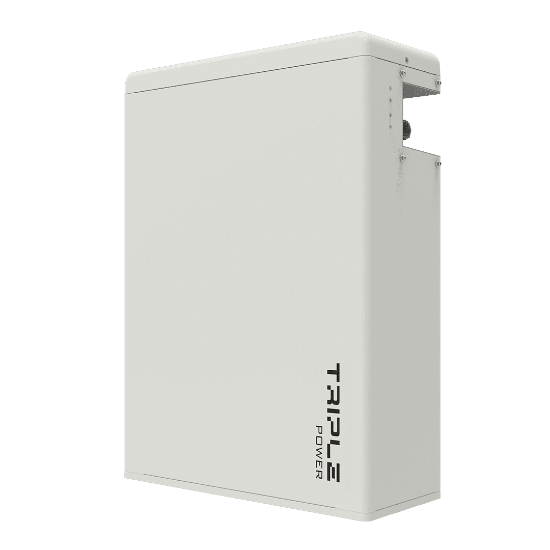

Solax Triple Power 5.8kWh Master Battery (V2): The Smart Start to High Voltage Energy Storage

Take control of your home energy with the Solax Triple Power 5.8kWh Master Battery (SOLAX-TP-5.8M V2). This high-voltage (HV) unit serves as the intelligent core of your battery energy storage system, working seamlessly with compatible Solax hybrid inverters. By storing excess energy generated by your solar panels, you can significantly reduce your reliance on the grid, lower your electricity bills by avoiding peak energy tariffs, and enjoy greater energy security.

High Performance High Voltage Storage with LFP Safety

This master unit delivers a nominal capacity of 5.8kWh, with 5.1kWh of usable energy, according to the V2 datasheet. It operates at a nominal voltage of 115.2V, characteristic of efficient high-voltage systems. Critically, it employs Lithium Iron Phosphate (LFP) battery chemistry, renowned for its safety, stability, and long service life. The battery roundtrip efficiency is stated as 95% in the technical documentation, ensuring minimal energy loss during charging and discharging.

Scalable and Flexible Energy Storage Solution

Start with this 5.8kWh Master unit and expand as your needs grow. The Triple Power V2 system allows you to connect additional 5.8kWh Slave batteries (SOLAX-TP-5.8S). Depending on the specific Solax X1 or X3 Hybrid inverter used, you can create a system up to 23kWh (one master + three slaves). This scalability makes it an ideal choice for homeowners planning for future energy demands. Communication with the inverter is via CAN 2.0.

Built for Longevity and Harsh Conditions

Solax stands behind the Triple Power battery with a 10-year warranty. The technical specifications indicate a cycle life exceeding 6000 cycles, promising many years of reliable operation. Furthermore, its IP65 protection rating ensures it is safeguarded against dust and water ingress, making it suitable for installation in various environments, indoors or outdoors. It can be floor or wall-mounted using appropriate solar mounting systems. Correct solar cabling is essential for installation.

Why Evergy Recommend This Product

The Solax TP-5.8M V2 Master battery is a cornerstone of modern home energy storage, and we recommend it because:

• It provides a solid 5.8kWh starting capacity with safe LFP technology.
• It's the essential master unit for a highly scalable HV battery system (up to 23kWh).
• It boasts impressive longevity (>6000 cycles) and a 10-year warranty.
• Its IP65 rating ensures robust performance in diverse conditions.

Technical Highlights

Key specifications from the V2 datasheet:

• Nominal Capacity: 5.8 kWh
• Usable Energy: 5.1 kWh
• Nominal Voltage: 115.2 V
• Max Charge/Discharge Current: 35 A
• Cycle Life: > 6000 cycles

For full details and compatibility information, please see the specification tab or the official V2 product datasheet.

Begin Your Solar Storage Journey

Invest in the Solax Triple Power 5.8kWh Master Battery V2 and unlock the potential of your solar PV system. Pair it with a compatible Solax inverter and high-efficiency solar panels for maximum benefit. Explore slave batteries for future expansion.
