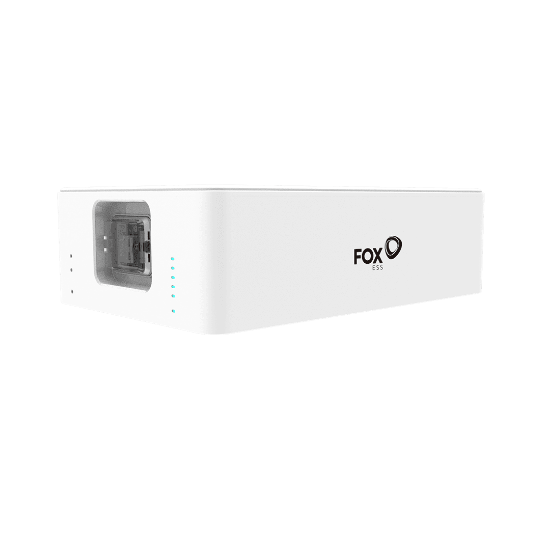

Fox ESS EQM4800 4.66kWh Master Battery

Fox ESS EQM4800 4.66kWh master battery

The Fox ESS EQM4800 is the master battery module for the EQ4800 high-voltage battery range. It is the battery that starts the stack and provides the main module role within the system. For customers or installers familiar with older Fox ESS references, EQM4800 is the updated replacement for ECM4800 codes that may still appear on legacy paperwork, historic product data or existing installation records.

That replacement wording is useful because many buyers still search using the older ECM part code. A clear product page helps connect that search intent to the current Fox ESS naming without creating confusion. It is also important to note that current EQM4800 stock is supplied with Type A connectors, so existing systems should be checked carefully before any replacement or expansion order is placed.

What EQM4800 is used for

EQM4800 is used when a project needs the master battery in the EQ4800 platform. It is the correct product for building a new compatible battery stack or replacing the main battery module in an existing one. If the system only needs more capacity added later, the matching EQS4800 slave battery would usually be the product to look at instead.

This makes EQM4800 a strong fit for higher-capacity residential and light commercial battery storage projects where a modular approach is preferred. The larger module size also makes it attractive for systems that want to reach higher storage targets without relying on as many individual battery units.

Main features

• 4.66kWh nominal capacity
• Master battery for the EQ4800 range
• Scalable system capacity up to 41.93kWh
• CAN communication
• Plug-and-play battery design
• Type A connector format

The larger 4.66kWh module size is one of the main reasons buyers choose the EQ4800 platform. It gives more storage per battery, which can make system planning simpler where the aim is to build a larger-capacity battery stack with fewer modules.

Fox ESS also states that the EQ4800 platform can scale up to 41.93kWh, giving installers and end users a wide expansion window if storage needs grow later. This can be useful where the initial battery size is based on current demand but future increases in usage, tariff optimisation or backup expectations are part of the plan.

CAN communication is another important part of the specification because it supports communication between the battery system and compatible inverter setups. In day-to-day use, that helps with battery control, charging behaviour and wider system performance.

Understanding the master battery role

One of the most important points on this product page is that EQM4800 is the master battery, not the support battery. In simple terms, this is the battery needed to start the stack. It is not the module used purely for adding extra storage once the system is already in place.

That distinction matters because it helps prevent ordering errors. If a customer needs additional capacity for an existing compatible system, they would normally need EQS4800 support modules. If they need the battery that acts as the main unit in the stack, EQM4800 is the correct choice.

Installation and compatibility

Fox ESS describes the EQ battery range as a plug-and-play storage solution, which helps keep installation and future expansion within one modular battery family. For installers, that can make system design, on-site work and later upgrades more straightforward.

Before ordering, compatibility should always be checked carefully. Installers should confirm the supported battery configuration, inverter compatibility and connector format before mixing current stock with older installed components. This is especially important because current EQM4800 modules use Type A connectors, while older ECM-series systems may not always be the same.

Replacement for older ECM4800 references

If you have searched for ECM4800, this is the updated Fox ESS model you are most likely looking for. EQM4800 is the current replacement reference for the older 4.66kWh master battery code, helping customers move from older product naming to the latest EQ-series reference with more clarity.

This is useful both for trade buyers and for website search visibility. Many customers still use the older battery code they already know, so making the replacement path obvious helps them find the right product faster.

Why buy Fox ESS EQM4800 from Evergy

At Evergy, we know that battery products need clear role and compatibility information, not just a headline capacity figure. The Fox ESS EQM4800 is a sensible choice for projects that need the current 4.66kWh master battery in the EQ4800 range, whether for a new system design, a replacement requirement or a carefully planned upgrade.

It is a strong option for buyers who want a higher-capacity Fox ESS battery platform, a current replacement for older ECM4800 references, and a modular route to future expansion using matching EQS4800 modules.
