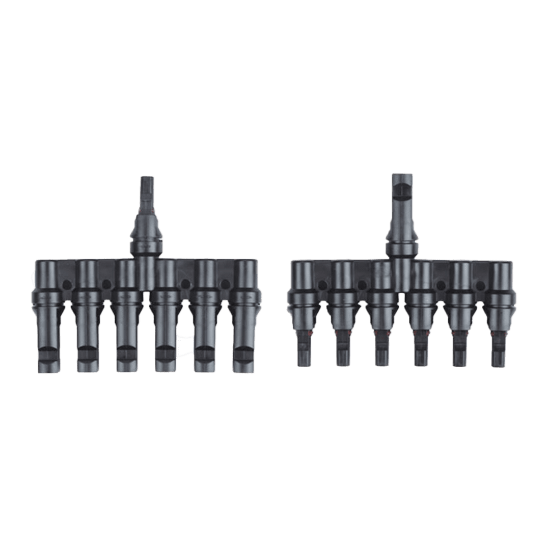

T2-Branch MC4 Solar Connectors for Parallel PV Systems

Evergy T2-Branch MC4 Solar Connectors: Essential for Parallel PV Systems

At Evergy, we understand the critical role every component plays in a high-performing solar photovoltaic (PV) system. Our T2-Branch MC4 Solar Connectors (SKU: DSMCT2) are specifically engineered to facilitate the efficient parallel connection of two solar panels or strings, enhancing your system's current output while maintaining voltage. Supplied by Deligo, a trusted UK provider to the electrical wholesale and distribution trades, these connectors embody the quality and reliability we stand for, ensuring seamless integration into your solar setup.

Maximise Your Solar Output with Robust Parallel Connections

Connecting solar panels in parallel is a common strategy to increase the overall current of your PV array, which can be particularly beneficial for charging battery storage systems or meeting higher power demands. The T2-Branch MC4 connector simplifies this process significantly. By combining two inputs into a single output, it reduces cable clutter and minimises potential voltage drop, ensuring that your solar panels operate at their optimal efficiency. This design is crucial for maximising the energy harvest from your solar installation, whether it's for a domestic rooftop system or a larger commercial project.

Durable Design for Uncompromising UK Weather Conditions

Our T2-Branch MC4 Solar Connectors are built to endure the diverse and often challenging UK climate. Featuring an impressive IP67 ingress protection rating, these connectors are fully sealed against dust and immersion in water, guaranteeing reliable performance year-round. The high-quality PPO/PC insulation material offers exceptional resistance to UV radiation and ozone, preventing material degradation and ensuring a long operational lifespan, matching the durability of your solar panels themselves. This robust construction is a testament to our commitment to providing components that stand the test of time and environment.

Seamless Integration and Installation for Solar Professionals

Designed with installers in mind, the T2-Branch MC4 Connectors feature a straightforward snap-in locking mechanism, allowing for quick, secure, and error-free assembly. This plug-and-play design not only simplifies the installation process but also significantly reduces the risk of incorrect connections, which is vital for system safety and performance. These connectors are fully compatible with standard MC4 cables and existing MC4 connectors, making them a versatile choice for expanding or upgrading any photovoltaic system. For guidance on secure connections, explore our resources on solar panel components.

T2-Branch MC4 Solar Connector Technical Specifications

• Product SKU: DSMCT2
• Connector Type: MC4 T2-Branch (2-to-1 parallel)
• Rated Voltage: 1000V DC (TUV certified)
• Rated Current: 30A
• Contact Material: Tinned Copper
• Insulation Material: PPO/PC
• Protection Degree: IP67 (when mated)
• Flame Class: UL94-V0
• Temperature Range: -40°C to +90°C
• UV Resistance: Excellent
• Cable Compatibility: 2.5mm², 4mm², 6mm² (14AWG-10AWG) solar cables

Why Evergy Recommend the Deligo DSMCT2 T2-Branch Solar Connectors

As Evergy, working closely with our independent electrical wholesaler partner, LAMPS, we pride ourselves on offering products that we trust and would use ourselves. The Deligo DSMCT2 T2-Branch Solar Connectors are a prime example. Their robust construction, high electrical ratings, and ease of installation make them a go-to choice for reliable parallel connections in solar PV systems. We value their proven performance in real-world installations and their contribution to creating efficient, durable solar arrays. With genuine stock behind our website, you can rely on Evergy for fast supply and expert support.

Expand Your Solar System with Confidence

Whether you're embarking on a new solar installation or looking to expand an existing one, the Evergy T2-Branch MC4 Solar Connectors provide the reliable foundation you need. For larger systems requiring more inputs, we also offer T3 or T4 branch connectors. Need help choosing the right components for your specific solar project? Our knowledgeable renewables team is here to assist. Get in touch with Evergy today for expert advice and to explore our full range of MC4 connectors and solar solutions.
