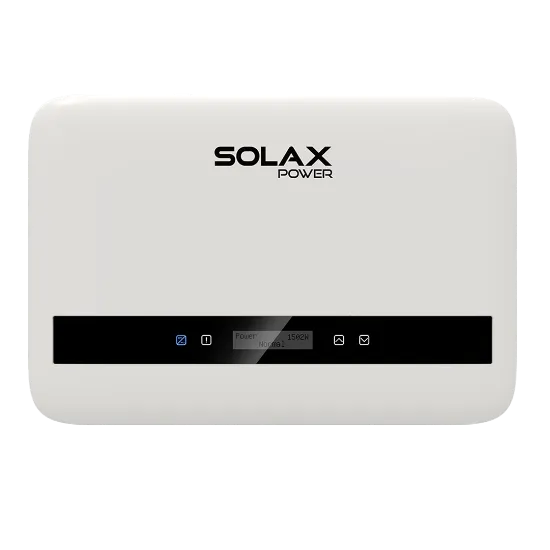

SolaX X1-BOOST G4 3.0kW Single-Phase String Inverter

A dual-MPPT inverter for flexible home solar design

SolaX X1-BOOST G4 3.0kW Single-Phase String Inverter is built for residential solar systems that need more layout flexibility than the smallest one-tracker products can offer. It is a single-phase grid-tied inverter with two MPPTs, making it especially useful for homes where the roof is not overly complex but still benefits from having more than one tracking channel. That can make a significant difference to how cleanly a domestic array is designed and how effectively it performs over time.

At 3.0kW rated output, this model sits in a very practical part of the market. It is large enough for a meaningful home solar installation, but still compact enough to avoid feeling oversized for modest residential projects. For many UK homes, that is exactly the sort of balance that makes an inverter easy to justify.

Why the 3.0kW BOOST is a useful size

The appeal of this version is not just its output rating. It is the way that output is matched with flexible PV input capability. The inverter supports up to 6kWp of recommended array power and 200% DC oversizing, which means it can work comfortably with modern higher-output panels without forcing the installer into a larger single-phase unit. That makes it a strong fit for homes that want decent generation potential from limited roof space.

It also helps bridge the gap between very small home systems and more ambitious residential installs. Where a 1-MPPT inverter may feel restrictive, but a bigger product family would be unnecessary, the 3.0kW X1-BOOST G4 lands in a very sensible position.

Core specifications with real value

• 3000W rated AC output
• Up to 6kWp recommended PV input
• Dual MPPT layout with one string per tracker
• 40 to 560V MPPT range and 50V start-up voltage
• 16A maximum input current and 22A short-circuit current per MPPT
• Type II SPD on both AC and DC
• Built-in export power control
• WiFi and app-based commissioning and monitoring
• IP66 enclosure and natural cooling

Those specifications matter because they make the inverter more adaptable on real domestic jobs. The dual-MPPT design is especially useful where the roof has two usable sections, while the wide MPPT range and strong current allowance help keep the unit compatible with current module types. Together, they make the 3.0kW BOOST far more practical than a basic entry-level inverter.

Protection, monitoring and control

The X1-BOOST G4 family is designed to feel current rather than stripped back, and that shows in the protection package. This model includes Type II surge protection on both AC and DC sides, while the broader platform includes anti-islanding protection, reverse-polarity protection, grid monitoring, DC injection monitoring and temperature protection. It is also ready for rapid shutdown, with AFCI support available on the wider platform.

WiFi and app-based setup are important here too. Easy commissioning, cloud visibility and practical post-install monitoring all matter in residential systems, both for installers and for homeowners who want to keep an eye on performance. Export control capability adds another layer of real-world usefulness on sites where that has to be part of the design brief.

Installation and fitment

With dimensions around 404 x 274 x 146 mm and a weight of roughly 11kg, this inverter remains compact enough for typical domestic wall mounting. It works well in garages, utility areas and sheltered outdoor positions where an IP66-rated housing is useful. Natural cooling also keeps the unit quieter, which is helpful in residential settings where noise and simplicity matter.

Two MPPTs give this inverter a broader set of use cases than smaller single-tracker models. It is still straightforward to specify and install, but it offers more flexibility where a roof layout or string arrangement needs a cleaner split. That is one of the main reasons this model is so commercially useful.

Who it suits best

The 3.0kW X1-BOOST G4 is well suited to smaller and mid-sized domestic solar systems on single-phase supply, especially where two tracking channels would improve layout flexibility or performance. It is a strong choice for retrofit homes, modest family houses, bungalows and tidy new-build systems that need a compact but capable inverter.

It is not about buying the biggest unit available. It is about choosing an inverter that matches the size and complexity of the project while still giving enough future-proofing for modern panels and realistic monitoring expectations.

Final view

SolaX X1-BOOST G4 3.0kW Single-Phase String Inverter is a highly practical residential inverter for buyers who want dual-MPPT flexibility, strong oversizing tolerance and modern safety features in a compact package. With up to 6kWp of PV support, Type II SPD on AC and DC, export control capability, WiFi setup and an IP66 enclosure, it is an excellent option for smaller to mid-sized home solar systems.
