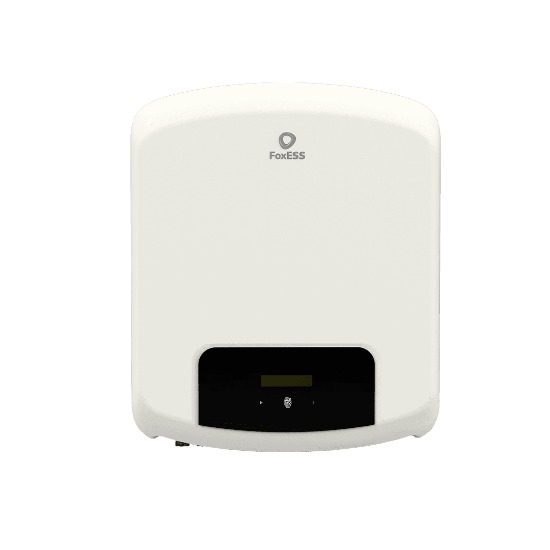

Fox ESS F3600 3.6kW Single Phase String Inverter

Fox ESS F3600 3.6kW Single Phase String Inverter: Efficient and Flexible Solar Energy Conversion

The Fox ESS F3600 3.6kW Single Phase String Inverter is designed for homeowners seeking a reliable and efficient solution for their solar energy systems. With dual MPPTs, high conversion efficiency, and compatibility with battery storage, it offers flexibility and performance for various installation scenarios.

Optimised Energy Harvesting with Dual MPPT

Featuring two independent Maximum Power Point Trackers (MPPTs), the F3600 allows for optimal energy harvesting from two separate panel arrays. This is particularly beneficial for installations with panels on different roof orientations or those subject to partial shading.

High Conversion Efficiency

With a maximum efficiency of 97.4%, the F3600 ensures that the majority of the solar energy captured is converted into usable electricity. Its low start-up voltage of 120V enables earlier energy production during the day, maximising overall energy yield.

Battery Ready for Future Expansion

The F3600 is designed to be easily upgradeable with Fox ESS battery storage solutions. By integrating a Fox ESS charge controller, homeowners can add battery storage to their systems, enhancing energy independence and allowing for energy use during peak demand times or outages.

Robust and Weatherproof Design

Engineered for durability, the F3600 boasts an IP65 rating, making it suitable for outdoor installations. Its natural convection cooling system eliminates the need for internal fans, reducing maintenance requirements and operational noise.

Smart Monitoring Capabilities

Stay informed about your system's performance with the Fox ESS Cloud platform. The F3600 supports remote monitoring via a smartphone app or web portal, providing real-time data on energy production, system status, and alerts.

Why Evergy Recommends This Product

The Fox ESS F3600 stands out for its combination of efficiency, flexibility, and future-ready design:

• Dual MPPT: Accommodates complex roof layouts and maximises energy harvest
• High Efficiency: Ensures optimal energy conversion for cost savings
• Battery Compatibility: Simplifies future integration of energy storage
• Durable Build: IP65 rating ensures longevity in various environments
• Smart Monitoring: Provides real-time insights into system performance

Technical Specifications

• Rated AC Output Power: 3,600 W
• Max. DC Input Power: 5,400 W
• Max. Efficiency: 97.4%
• MPPT Quantity: 2
• Start-up Voltage: 120 V
• MPPT Voltage Range: 80 – 550 V
• Max. Input Voltage: 600 V
• Max. Input Current: 12.5 A per MPPT
• Dimensions (W x H x D): 402 x 476.5 x 148 mm
• Weight: 15.5 kg
• Protection Degree: IP65
• Cooling Method: Natural Convection
• Communication: Wi-Fi (standard), LAN/GPRS (optional)
• Warranty: 10 Years (upon registration)

For more detailed specifications, please refer to the datasheet available in the product resources section.
