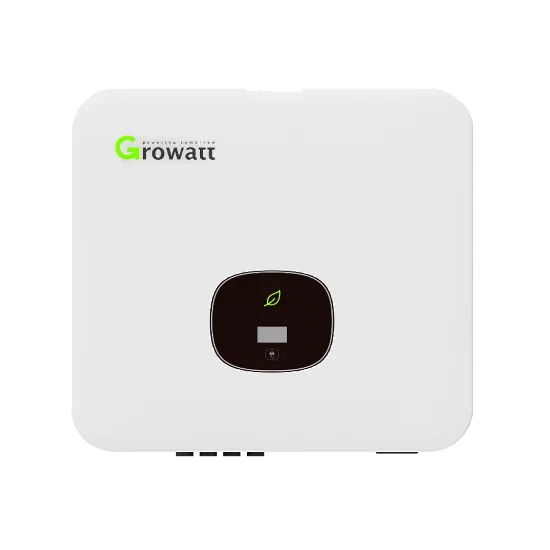

Growatt MIN10000-TL2-X-DC – 10kW Single-Phase String Inverter

The Growatt MIN10000-TL2-X-DC is a powerful 10kW single-phase string inverter designed for larger UK homes, commercial offices and small industrial sites. Part of Growatt’s latest TL-X2 series, it combines triple MPPT precision, high conversion efficiency and silent operation within a robust IP66 enclosure — ensuring long-term reliability under British weather conditions.

High-Efficiency Performance

Equipped with three MPPT trackers and a wide 60–550V input range, the MIN10000-TL2-X-DC ensures excellent performance across complex or shaded roof layouts. Each MPPT operates independently, providing up to 98.1% conversion efficiency even during low-light or variable irradiance. The inverter’s precise control algorithm and low THDi output maintain a stable grid connection while maximising daily yield from every panel.

Built for Reliability & Protection

Constructed with a weatherproof IP66-rated aluminium chassis, the unit uses natural convection cooling for quiet, fanless operation. Integrated Type II DC surge protection, residual-current and insulation monitoring, and anti-islanding safeguards provide comprehensive electrical security. Certified to EN 62109 and fully compliant with G99 grid standards, it ensures smooth connection for UK installations requiring dependable safety performance.

Key Features

• Up to 98.1% efficiency for optimal energy conversion
• 3×MPPTs with a wide 60–550V operating window
• IP66 fanless enclosure for silent, maintenance-free operation
• Integrated Type II DC SPD, RCM and insulation monitoring
• Built-in Wi-Fi and RS485 for ShinePhone/ShineServer monitoring (LAN/4G optional)
• Complies with EN 62109 safety and G99 grid requirements

If you’re wondering how the MIN10000-TL2-X-DC performs on cloudy UK days, its low start-up voltage and advanced MPPT tracking maintain power output even during low irradiance, helping to extend daily production hours.

Specification data verified from Growatt MIN7000–10000 TL-X2 datasheet (current release).

Seamless Integration with Solar Panels & Battery Systems

The Growatt MIN10000-TL2-X-DC integrates smoothly with solar panels of all major brands, making it ideal for larger residential or small commercial systems. Its 3×MPPT configuration allows flexible string layouts across multiple roof aspects or ground arrays, while the broad 60–550V MPPT range keeps the inverter productive throughout the day. Though it is a non-hybrid model, it can be paired easily with an AC-coupled battery inverter to provide energy storage without requiring a system redesign.

Smart Monitoring & Connectivity

Monitoring is intuitive through Growatt’s ShinePhone and ShineServer platforms. Built-in Wi-Fi and RS485 communication allow live data tracking, while optional LAN or 4G connectivity supports remote sites. Real-time performance monitoring helps users optimise output and gives installers reliable diagnostics to reduce maintenance visits. Export limitation is supported for DNO-compliant installations across the UK.

Compact Design & Rugged Construction

Measuring approximately 425×387×180mm and weighing around 20kg, the inverter combines compact form with durable materials. Its IP66 enclosure offers excellent resistance to dust and water ingress, and the fanless design ensures quiet operation below 25dB. Perfect for outdoor walls, garages or plant rooms, the MIN10000-TL2-X-DC is built to last with minimal maintenance demands.

Installer Guidance & System Notes

Why We Recommend the Growatt MIN10000-TL2-X-DC

Evergy recommends the MIN10000-TL2-X-DC for large-scale domestic or light-commercial arrays requiring triple MPPT flexibility, reliable performance and intelligent monitoring. It’s the logical step up from the 8kW model for properties demanding more output capacity and stable operation under British conditions.

Evergy is the renewables division of LAMPS Electrical, an independent UK wholesaler supporting the trade since 2009. Our Oxfordshire-based team provides verified stock, specification advice and post-sale technical assistance across the full Growatt range.

Compare in the Growatt MIN TL-X2 Range

FAQs – Growatt MIN10000-TL2-X-DC

For help with product selection, compatibility or UK compliance, contact Evergy.

Specification data verified from Growatt MIN7000–10000 TL-X2 datasheet (latest release).
