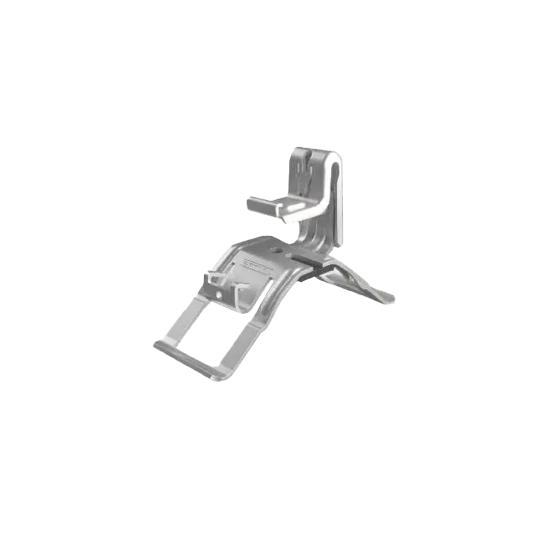

Esdec ClickFit Evo Corrugated Mounting Bracket: The Secure Solution for Corrugated Roof Solar

Confidently install your solar panels on corrugated roofs using the Esdec ClickFit Evo Corrugated Mounting Bracket. This specialised component provides a robust and reliable fixing point for the ClickFit Evo mounting rails, overcoming the challenges posed by profiled roof sheets. Ensuring a secure foundation is key to a long-lasting solar energy system that can help you reduce reliance on the grid and buffer against changing energy tariffs.

Bridging Corrugations for Stable Rail Mounting

Mounting directly onto the peaks or valleys of corrugated sheets is often not structurally sound. This bracket is designed to solve that problem:

• Secure Anchoring: Designed to be fixed through the roofing sheet directly into the underlying purlins or roof structure using appropriate fasteners (like self-tapping screws, ensure correct specification).
• Level Platform: Provides a stable, level surface elevated above the corrugations, onto which the ClickFit Evo rail can be easily attached (often via a click or simple bolt mechanism).
• Load Transfer: Effectively transfers the loads from the solar array directly to the roof's structural members.

Compatibility and Installation

This bracket is specifically part of the versatile ClickFit Evo ecosystem. According to Esdec's product information, it's engineered for compatibility with standard corrugated profiles (always verify profile dimensions). Installation typically involves careful sealing around the fixing points to maintain roof watertightness, following best practices and Esdec guidelines. Once the brackets are fixed, attaching the rails and module clamps follows the standard, efficient ClickFit Evo process.

Durable Materials for Roof Environments

Constructed from high-quality, corrosion-resistant materials like aluminium or galvanised steel (check datasheet for specifics), this bracket is built to withstand decades of exposure on a roof. Its durability ensures the long-term safety and performance of the solar installation and is covered by Esdec's comprehensive system warranty when installed correctly.

Why Evergy Recommend This Product

For ClickFit Evo installations on corrugated roofs, this bracket is the recommended fixing method. We endorse it because:

• Correct Application: Specifically designed to address the unique requirements of corrugated roofing.
• Structural Soundness: Provides a secure anchor point by fixing directly to the underlying structure.
• System Integration: Allows seamless attachment of standard ClickFit Evo rails.
• Reliability: Ensures a stable and durable mounting solution compliant with Esdec standards.

Key Technical Details

• Function: Mounting Bracket for Corrugated Roofs
• System: Esdec ClickFit Evo
• Fixing: To roof purlins/structure (requires separate fasteners)
• Rail Attachment: Compatible with ClickFit Evo rails
• Material: Aluminium or Steel (verify via datasheet)

Please consult the Esdec installation manual and datasheet for compatible profiles, required fasteners, and waterproofing details.

Plan Your Corrugated Roof Installation

Accurate planning is essential for corrugated roofs. Use the Enstall Calculator for Esdec, ensuring you select the correct roof type and structure details. The calculator will specify the required number and placement of Corrugated Mounting Brackets and appropriate fasteners. Add the correct quantity to your basket along with rails, clamps, and end caps. Explore all Esdec mounting solutions here.
