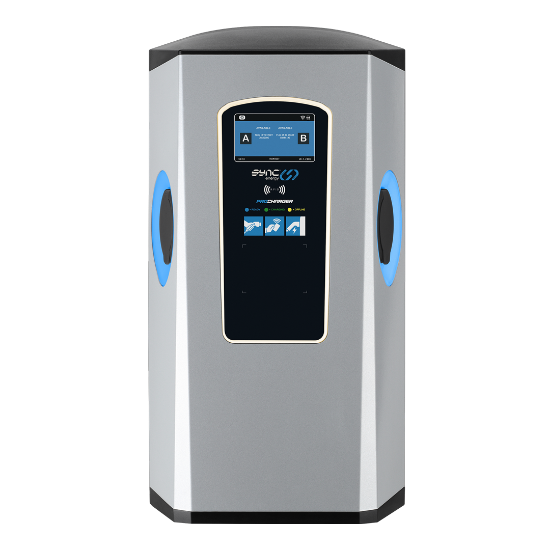

Sync Energy Pro Charger Twin (Single Phase): Dual 7.4kW Smart Charging for Commercial Use

Maximise EV charging availability at your workplace, depot, or destination with the Sync Energy Pro Charger Twin. This robust wall-mounted unit features two Type 2 sockets, each delivering up to 7.4kW on a standard single-phase supply. Designed specifically for commercial environments, it combines durability with advanced smart features, including OCPP 1.6J compatibility for easy integration with management platforms like Monta, built-in MID meters, and multiple access methods. This model comes ready for RFID/App access control.

Efficient Dual Charging Output

Serve two EV drivers concurrently with reliable standard AC charging:

• Twin 7.4kW Sockets: Provides simultaneous charging for two vehicles at up to 7.4kW (32A) each, ideal for employee parking, fleet depots, or destination charging where overnight or extended stays are common.
• Single-Phase Input: Operates on a standard 220-240V single-phase supply, widely available in most commercial buildings.
• Load Balancing Capability: Compatible with the Sync Energy Balancer system (sold separately) for dynamic load management across up to 16 chargers, preventing overload on site supply, according to Sync Energy information.

Smart Management for Commercial Deployments

Integrate, manage, and monitor your charging infrastructure with ease:

• OCPP 1.6J Ready: Fully compliant with the Open Charge Point Protocol 1.6J standard, enabling seamless connection to various third-party charge point management systems (CPMS) like Monta (which powers the backend, according to the datasheet) for features like billing, remote diagnostics, and user management.
• Flexible User Access: Supports charging initiation via RFID cards/fobs or compatible smartphone apps (including Monta QR code scanning and Plug and Charge functionality), offering versatile access control for different user groups (e.g., staff, visitors). This model does not include the payment terminal see the payment version if required.
• Built-in Connectivity and Metering: Features 4G connectivity as standard for reliable communication, along with integrated MID certified energy meters for accurate billing and usage tracking.
• Clear User Interface: Features a backlit colour touchscreen and RGB LED indicators for intuitive operation and clear charging status indication.

Robust, Safe and Compliant Design with 5-Year Warranty

Engineered for demanding commercial use and peace of mind:

• Durable Construction: Combines stainless steel and UV-resistant polycarbonate materials, offering IP65 protection against dust and water, and a high IK10 impact rating for the body (IK08 screen), as per the datasheet.
• Integrated Safety: Includes comprehensive built-in electrical protection: Type A 30mA AC RCD, 6mA DC leakage detection, PEN fault detection, and MCB overcurrent protection, simplifying installation and ensuring user safety.
• Accessibility Ready: Designed in compliance with PAS 1899:2022 accessibility standards for inclusive use when installed according to guidelines.
• Installation Friendly: Supports daisy-chain wiring with loop-in/loop-out terminals accepting up to 35mm² cable for easier installation of multiple units, according to the datasheet.
• Extensive Warranty: Comes with a 5-year on-site warranty from Sync Energy for reliable operation.

Why Evergy Recommend This Product

The Sync Energy Pro Charger Twin (Single Phase) provides a robust, smart, and efficient solution for deploying multiple standard-speed charging points. We recommend it because:

• Doubles Charging Capacity: Offers two 7.4kW sockets from a single unit, maximising space and installation efficiency.
• Commercially Focused Smart Features: Built-in 4G, MID meters, and OCPP 1.6J compliance are ideal for managed charging networks.
• Robust and Safe: High IP/IK ratings and comprehensive integrated safety features ensure durability and compliance.
• Excellent Warranty Support: The 5-year on-site warranty is a significant advantage for commercial installations.

Ideal For

This dual 7.4kW smart charger is ideally suited for:

• Workplaces providing day-time or overnight charging for employee vehicles.
• Retail parks, supermarkets, gyms, and hospitality venues offering customer charging.
• Residential developments (apartment blocks) providing shared charging facilities.
• Depots for fleets requiring standard speed overnight charging for multiple vehicles.
• Any site needing multiple, smartly managed EV charging points connected via OCPP. See our full Commercial EV Charger range.

Technical Specifications Highlights

Key specifications for the Sync Energy Pro Charger Twin (Single Phase), based on the product datasheet:

• Sockets: 2x Type 2 Socket Outlets (Untethered)
• Max Power Output: 2x 7.4kW (32A per socket, Single Phase Input)
• Key Smart Features: OCPP 1.6J / Monta Compatible, RFID/App/QR Access, MID Meter, Load Balancing Ready
• Connectivity: Built-in 4G
• Protection and Safety: IP65 / IK10 Body Rated, Integrated RCD (Type A + 6mA DC), PEN Fault Protection, MCB

For comprehensive technical details, please see the Sync Energy Pro Charger Twin datasheet or the specifications tab.
